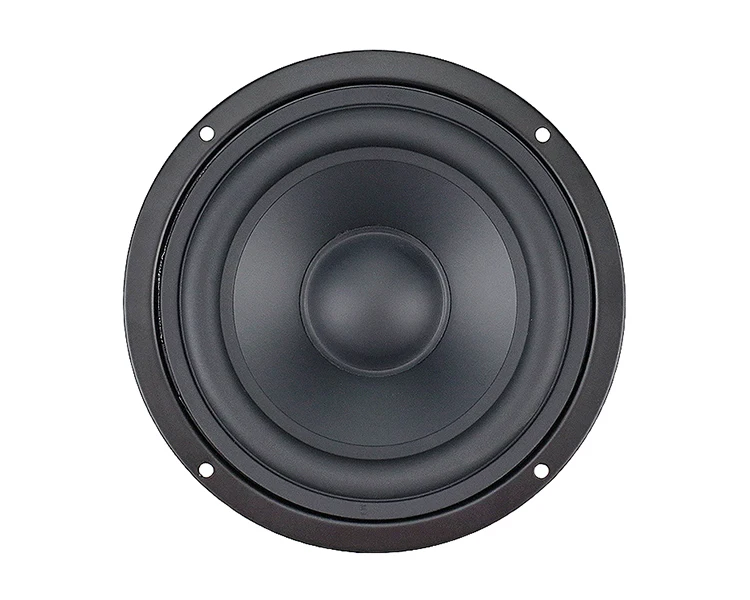

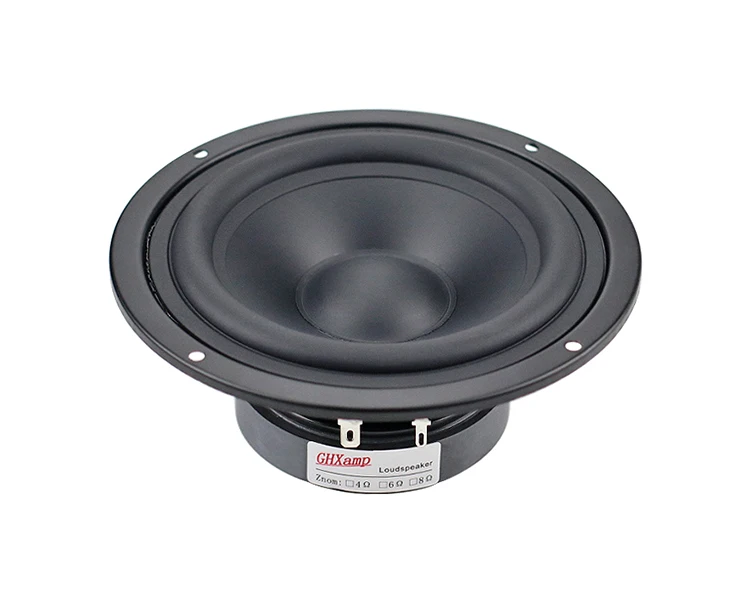

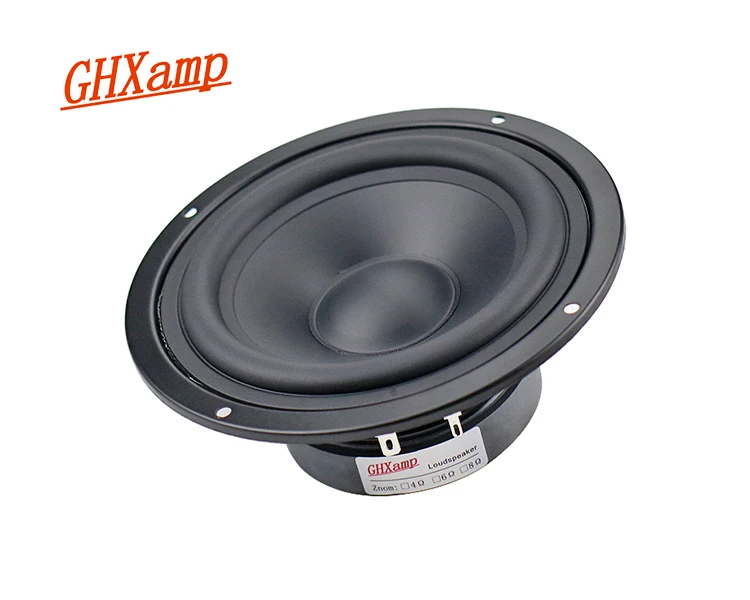

1. Speaker with all-metal cast iron frame, matte coated paper tray, rubber speaker side, soft voice, low frequency strong, is the enthusiast DIY bass selection.

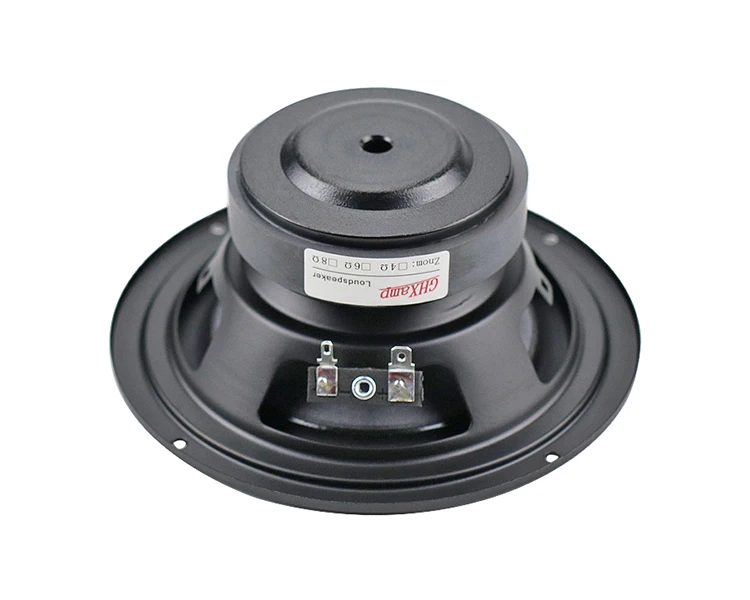

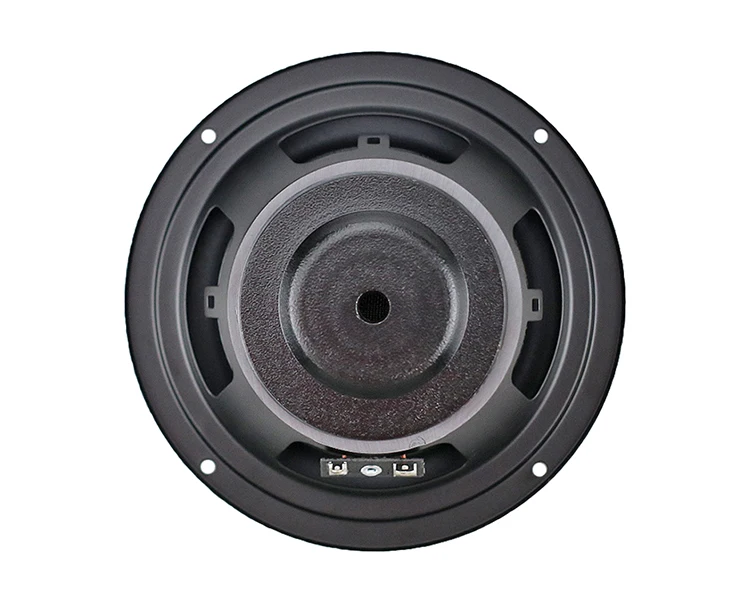

2. Magnetic tail hole cooling design to protect the voice coil good ventilation and heat dissipation.
3. Pure copper braided guide line, sound quality to a higher level
Max power: 90W
Rated Power :45W
DC resistance: about 5.5OHM
Impedance: 8OHM
Resonant frequency: 60Hz
Frequent frequency: F0-7300hz
Sensitivity: 89DB
Q value: 0.51Qts
Voice coil diameter: 25mm

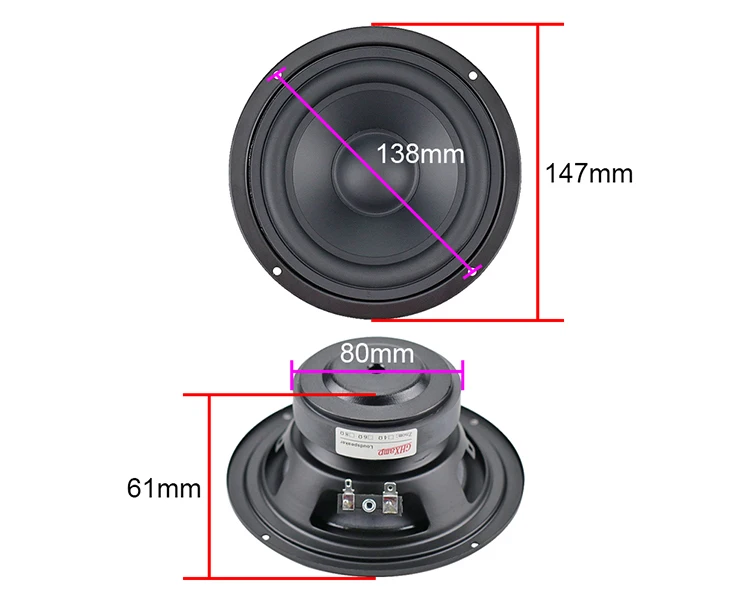

Magnet diameter: 80mm

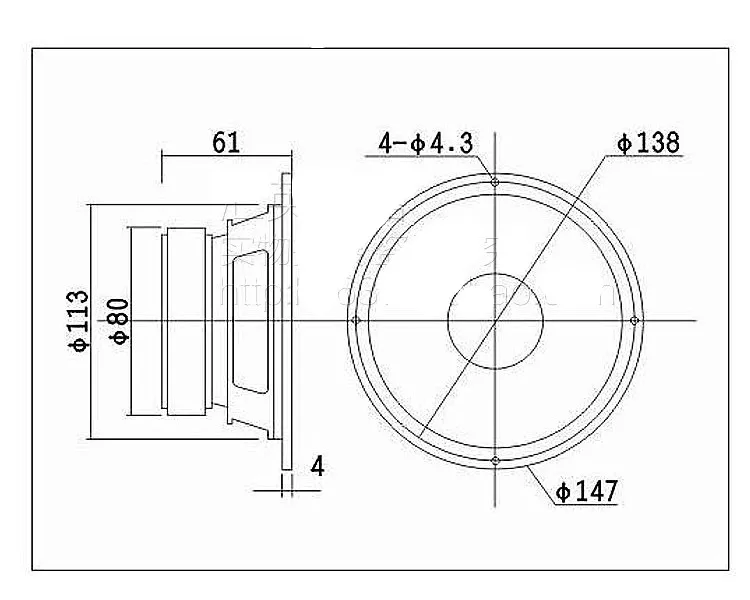

Speaker diameter: 147MM
Open Hole diameter: 113MM
NET Weight:0.696kg/pcs
Questions about DC impedance:
The impedance is dynamic and the DC resistance is static! Impedance = resistance *1.2-1.4 times The impedance rises with the high frequency, and it changes dynamically. If the DC has about 6 ohms, the dynamic impedance is about 8 ohms.
The conventional impedance is 5-6 ohms, and the DC resistance is 3-5 ohms. The conventional impedance is 7-8 ohms, and the DC resistance is 5-6 ohms.
Only logged in customers who have purchased this product may leave a review.
E*****e
5 üzerinden 5 oy aldı
2021-05-26
The maximum stroke of the diffuser in one side is 5mm. fs-59
Qts-69 vas 6.6-with a load mass of 6g. resistance on Multimeter-5 ohms. Complete screws a...More
The maximum stroke of the diffuser in one side is 5mm. fs-59

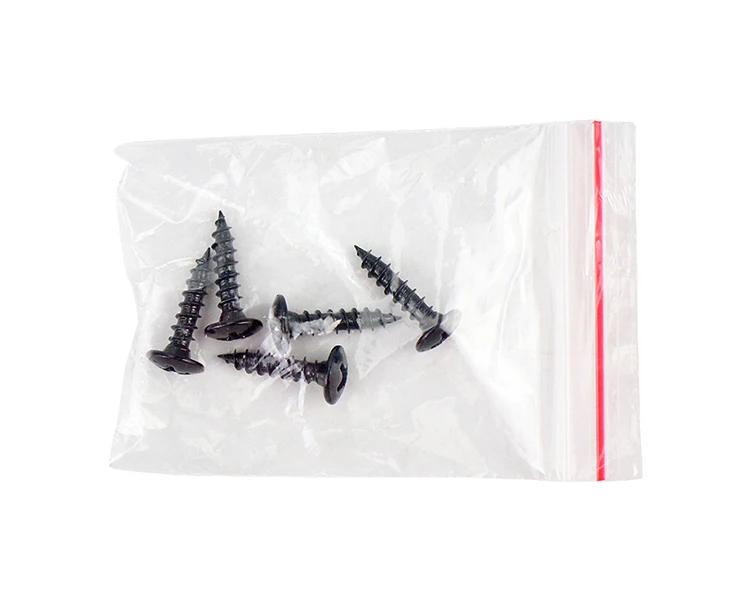

Qts-69 vas 6.6-with a load mass of 6g. resistance on Multimeter-5 ohms. Complete screws after assembling acoustics will try not to forget to fill in the feedback.
