Heltec 12V Battery Equalizer 10A Balancer for LiFePO4, Li-ion, Lead Acid – LCD Meter for 24V-96V

Key Features of the Heltec Battery Equalizer

• Wide Compatibility
  The Heltec Battery Equalizer works with batteries ranging from 7V to 18V. It supports 24V, 36V, 48V, 96V, and even higher-voltage configurations (up to 240V).
• Efficient Voltage Balancing
  The active balancer ensures that your batteries charge and discharge evenly. This reduces the risk of overcharging and improves battery life.

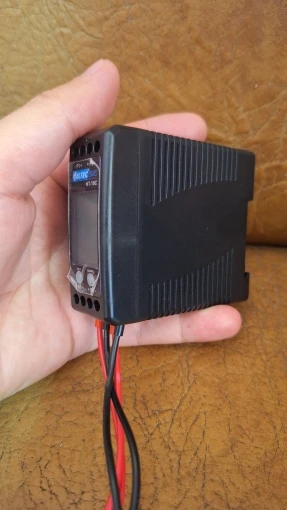

• Easy Installation
  You can quickly install the equalizer using its rail-type buckle design. It’s ideal for both DIY and professional installations in distribution boxes.

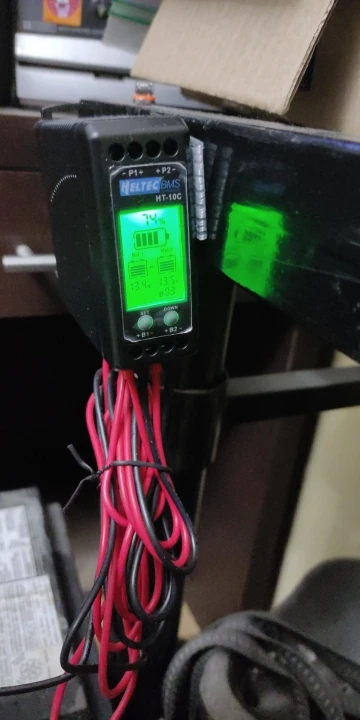

• Real-Time Monitoring with LCD Display
  The built-in LCD meter displays real-time battery status. This feature allows you to monitor the voltage levels and maintain optimal performance.
• Versatile for Multiple Batteries
  The equalizer can handle multiple batteries connected in parallel or series. For larger systems, you can connect multiple equalizers to balance more batteries at once.
• Perfect for Various Applications
  It’s perfect for solar systems, electric vehicles, and energy storage solutions. It prevents battery imbalance and helps you maximize battery performance.

Installation Instructions:

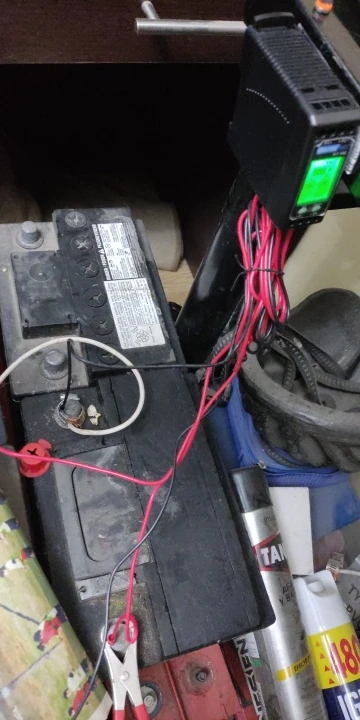

1. Battery Connection: Ensure the batteries are within the normal operating voltage range (7V-18V). Connect the B1+ and B1- terminals of the equalizer to Bat-1.
2. Select Battery Type: Long-press the SET button for 5 seconds to activate the battery type selection. Once the display flashes, use the Set or Down button to choose the correct battery model (default mode is B03).
3. Connect Battery Terminals: After the correct setting is saved, connect the B2+ and B2- terminals of the equalizer to Bat-2.

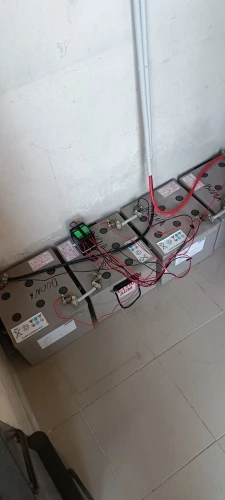

4. Expand with Multiple Equalizers: To balance more batteries, connect additional equalizers in parallel via the P1 and P2 terminals. Each equalizer handles two batteries, and multiple equalizers can be used in larger battery banks.

Balance Over Time: After installation, allow several hours for the system to balance the voltages between the connected batteries.

Important Notes:

• Batteries should be of the same type and preferably have similar capacities and ages. Significant variations can affect the equalizer’s performance.
• Each equalizer supports the connection of two batteries.
• The equalizer can be used in parallel to balance voltages across multiple batteries in a large battery pack. Theoretically, you can connect countless batteries in parallel for large-scale systems.

Battery Type Table

*Default mode B03

Installation Wiring Diagram

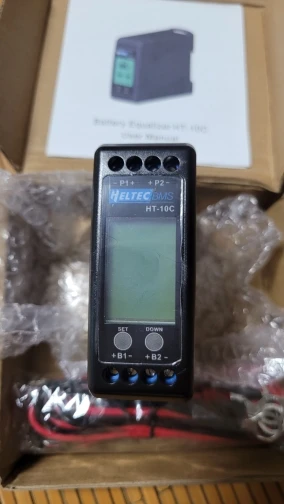

HT-10C/HT-10E

HT-10N
