E-ACE B28 Car Dvr Dash Cam 4.0 Inch Video Recorder Auto Camera 3 Camera Lens Support Rear View Camera Registrator Dashcam DVRs
$60.32 – $137.02
|
Features And Specifications
|
Installation Type
|
Portable Recorder, suitable for all vehicles with windshield
|
|
Screen(Display) Size
|
4.0 Inch IPS Screen
|
|
|
Chipset(Processor/CPU)
|
JIELI
|
|
|
Camera Sensor
|
Front 2MP + Inside 1 MP + Rear 1MP
|
|
|
Camera Lens
|
Front + Inside + Rear; 6 Glass + 4 Glass + 4 Glass ; 170 Degree Angle + 120 Degree Angle + 140 Degree ; F2.0 Aperture + F2.2 Aperture + F2.2 Aperture
|
|
|
Video Resolution
|
Front: 1920*1080P@25FPS; Inside : 640*480P@25FPS; Rear: 640*480P@25FPS
|
|
|
Photo Resolution
|
12M
|
|
|
Video Code
|
H.264
|
|
|
Battery
|
Built-In (Built-in battery is very small, can not support working, only for save time&setting, please use original power charger when working)
|
|
|
OSD Languages
|
English, Russian, Chinses, Japanese, Korean,etc….. (If you want other languages,tell us,we will help you add it)
|
|
|
Basic Features
|
G-Sensor, Cycle Recording, Motion Detection, Parking Monitor, Time&Data Display, Wide Dynamic Range, Picture in picture display, ON/OFF Automatically
|
|
|
Memory Card
|
Micro SD Card, class 10 and 8GB to 32GB (Not included)
|
|
|
Rear Camera Upgrade
|
Support max 10 meters cable Rear Camera
|
|
|
Add Features
|
Night Vision
|
|
|
More Features
|
Coming soon…..
|
|
|
Packing List
|
Basic:
1 x Packaging box
1 x DVR 1 x Power charger 1 x User manual |
1 x Rearview Camera With 6 Meters Cable(Optional)
|
|
1 x Rearview Camera With 10 Meters Cable(Optional)
|
||
|
1 x Buck Line For 24H Parking Monitoring(Optional)
|
||
|
1 x Real Class 10 High Speed TF Card(Optional)
|
||
|
Pay Attention
|
About 24h Monitoring
|
The DVR is only compatible with cars that have a 12V power supply. A 24V power supply will burn the motherboard. If you want to use 24V, please add a 24V to 12V Converter(BL).
|
|
About Video
|
Our Car DVR is FHD 1080P Video Recorder,must use high quality Class 10 TF Card, any low quality/low speed TF card all can't support our DVRs work normally, if you can't make sure you have good TF Card,please buy our Original TF Card together.
|
Main Features

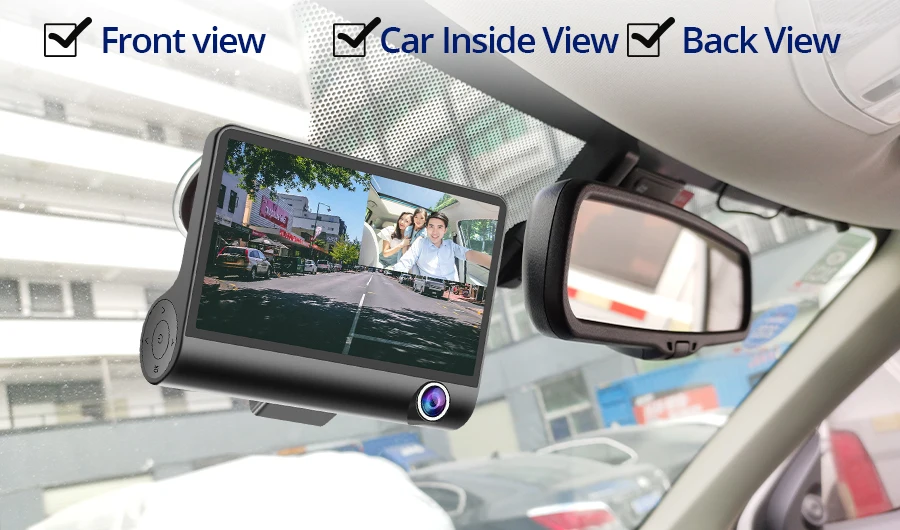

B28 Car Dvr With 3 Camera Lens
1.Front View 2.Car Inside View 3.Back View
Have B28,Don't Need Worried The Below Problem
1. No WorriedPrevent accidents
2. Record Car Inside Video Protect Car From Thief
3. Offer Evidence To police
Why choose E-ACE Brand Car DVR/Dash Camera ?
E-ACE is the top brand and gold seller in Aliexpress, our Brand Tenet is “Safer Driving, Better Living”. We offer our top quality products to all drivers, take more safer driving to all drivers and make them better living. All customers are very satisfied with our products and after services. Following details are E-ACE products VS other brands products.
1. Display
A: HD IPS screen，resolution:1280 * 720; display clearer.
B: LCD screen, resolution:640*480;display blurry.
2. Chip
A: JL quad-core chip, running faster, chip working temperature -20℃ to 80℃.
B: Generalplus dual core chip, running slow, easy to dead, chip working temperature -5℃ to 50 ℃.
3. Camera Lens
A: Full 6-layer glass lens, the video still clear under high temperature conditions.
B: 4-layer plastic lens,video is blurry when temperature than 40 ℃.
4.Working Temperature
A: JL chip with 6-layer glass lens, work well in -20℃ to 80℃.
B: Generalplus chip and 4-layer plastic lens, video hang and blurry over than -5℃ to 50 ℃.

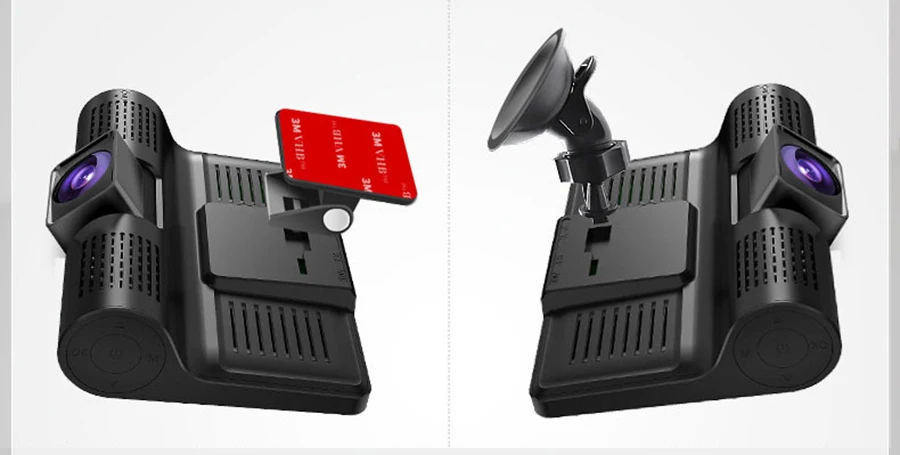

5. Mount holder
A: Strong 3M Glue Adhesive Mount and Suction Cup Mount, suitable for all different vehicles.
B: Only Inferior Suction Cup Mount, just use for 50% vehicles and fall down easily.
6. Packaging box
A: Thickened brand gift box with all company information and certifications, will not damaged in transportation and convenient for after service.
B: Neutral thin box without any contact information and without any certifications, easy damaged in transportation and hold by customs when import, can't contact with seller to get help when using.
2 Lens — Front + Inside Record
The front + inside lens is recorded at the same time, the front lens is wide-angle at 170°, the inside lens is wide-angle at 120°, Enjoying happy travel with families ,don't forget to record all happy videos timely.
Reverse Image
If you installed our back camera,When reversing,dvr automatically switches to display the rear lens image, and the full screen displays the rear environment assisted reversing.
Waterproof Rear Camera Lens
Rear Camera Lens is with 4 LED lights,automatic fill light when reversing.
About Choosing The Length Of Rear Camera Cable
There are 2 lengths of rear camera (up to about 10 meters) can be chosen,suitable for cars of different lengths.Please choose the rear camera according to the length of your car.
Three Camera Picture In Picture Display
In addition to front and rear view, you can also observe everything that happens inside the car.Can choose a different screen viewing mode, before and after the double record ,car inside and outside the same record,large wide-angle high-definition picture quality,wider vision,driving more secure.
4.0 Inch IPS Screen Display
4.0-inch IPS HD screen playback is more intuitive, clear and delicate.
F2.0 Large Aperture
6 glass lens and F2.0 large aperture, high light transmittance, sharp crystal clear restore the real image.
Loop Recording
When this feature is turned on, the memory card is full and the oldest video will be overwritten by the newly recorded video.However, videos under special conditions will not be overwritten, such as G-sensor, Parking Monitoring.
G-Sensor
When your car is subjected to an impact or other emergency, the G sensor is triggered, so that the recorder immediately records and locks the video.
Motion Detection
With the motion detection function is enabled, when the Car DVR detects a moving object, it will automatically start recording video. When there is no moving object, it will stop recording and detect the moving object again.
Parking Monitor
If you are worried about your car being damaged by someone else after parking, you can use our buck line to connect the DVR to ensure that the recorder works 24 hours.If someone else hurts your car and the shock triggers the G-sensor, the DVR will immediately turn on and record the situation.
Buck Line
Use the buck line to not occupy the cigarette lighter interface.
First, connect the negative pole(black line) of the buck line to the ground of the car fuse box;
Secondly, if you want to continue monitoring after parking (the DVR works 24 hours), connect the positive pole(red line) of the buck line to the BAT interface of the car fuse box;
If you want to stop monitoring after parking (the DVR does not work after parking), connect the positive pole of the buck line to the fuse box ACC interface.
Wide Dynamic Range (WDR)
WDR technology can achieve very perfect video and image quality, regardless of whether the outside light is too bright or too dark.
B28 Video Display
B28 Details Display
B28 Display
Because the different batch products,the rear view camera may different,thanks for your understand.
Packing List
B28
-1 x DVR(Without Rearview Camera)
-1 x Power charger
-1 x User Manual
-2 x Holder
-1 x USB Card Reader(Gift)
B28+6M RCC
-1 x DVR
-1 x Power charger
-1 x User Manual
-2 x Holder
-1 x USB Card Reader(Gift)
-1 x Rearview Camera With 6 Meters Cable
B28+6M RCC+BL
-1 x DVR
-1 x Power charger
-1 x User Manual
-2 x Holder
-1 x USB Card Reader(Gift)
-1 x Rearview Camera With 6 Meters Cable
-1 x Buck Line For 24H Parking Monitoring
B28+10M RCC
-1 x DVR
-1 x Power charger
-1 x User Manual
-2 x Holder
-1 x USB Card Reader(Gift)
-1 x Rearview Camera With 10 Meters Cable
B28+10M RCC+BL
-1 x DVR
-1 x Power charger
-1 x User Manual
-2 x Holder
-1 x USB Card Reader(Gift)
-1 x Rearview Camera With 10 Meters Cable
-1 x Buck Line For 24H Parking Monitoring
Because the different batch products,The Holders may different,thanks for your understand.
Insert the memory card correctly, please refer to the following.
About Rear Camera Installation
Please connect the rear camera's Red cable wire with your car reverse lamp power 's Positive pole(+).and then plug the car charger into the cigar lighter to power supply the car dvr.When you get your car in Reverse Gear, the car dvr will automatically switch to the rear camera with parking line.Then the auto reversing function will work.
