ZIQIAO for Skoda Octavia A5 2005 2007 2010 2012-2014/ Skoda Fabia 2011-2015 Trunk Handle Rear View Camera HS039 HS079
$40.86 $57.94
Dedicated Rear View Camera for Skoda Octavia A5 2005 2007 2010 2012-2014/ Skoda Fabia 2011-2015
Important tips:
******************
Dear customers, due to different countries or regions of the same model of the car parts may be different, the purchase must be based on your car license plate lights or the original camera shape and size to decide. If you have any questions, please contact us. Otherwise, we will not bear the responsibility of the product and the original car parts do not match!!!
Reference for suitable car model:
Camera model HS079:
For Skoda Octavia A5 2005 2007 2010 2012 2013 2014
Camera model HS039:
For Skoda Fabia 2011 2012 2013 2014 2015
For Skoda Superb 2010 2011 2012 2013 2014 2015
For Skoda Rapid 2012 2013 2014 2015
For Skoda Octavia A7 2015
For Skoda Yeti 2012 2013
For VW Polo 2015 2016
For Audi A1 A3 A4L 2012 2013 2014 2015 2016
for Skoda Fabia Octavia Yeti VW Passat Audi A1 Q3 A4L Trunk Handle Re
Specifications:
Signal mode: CVBS
Image sensor: CMOS
Video format: NTSC
White balance: Automatic
AGC and BLC: Automatic
Viewing angle: 140-170 degrees
Pixel: 728 × 512
Clarity: 512 TVline
Signal to noise ratio: Better than 48db
Working voltage: DC 12V
Waterproof level: IP68
Working temperature(Deg.C): -30 – +80

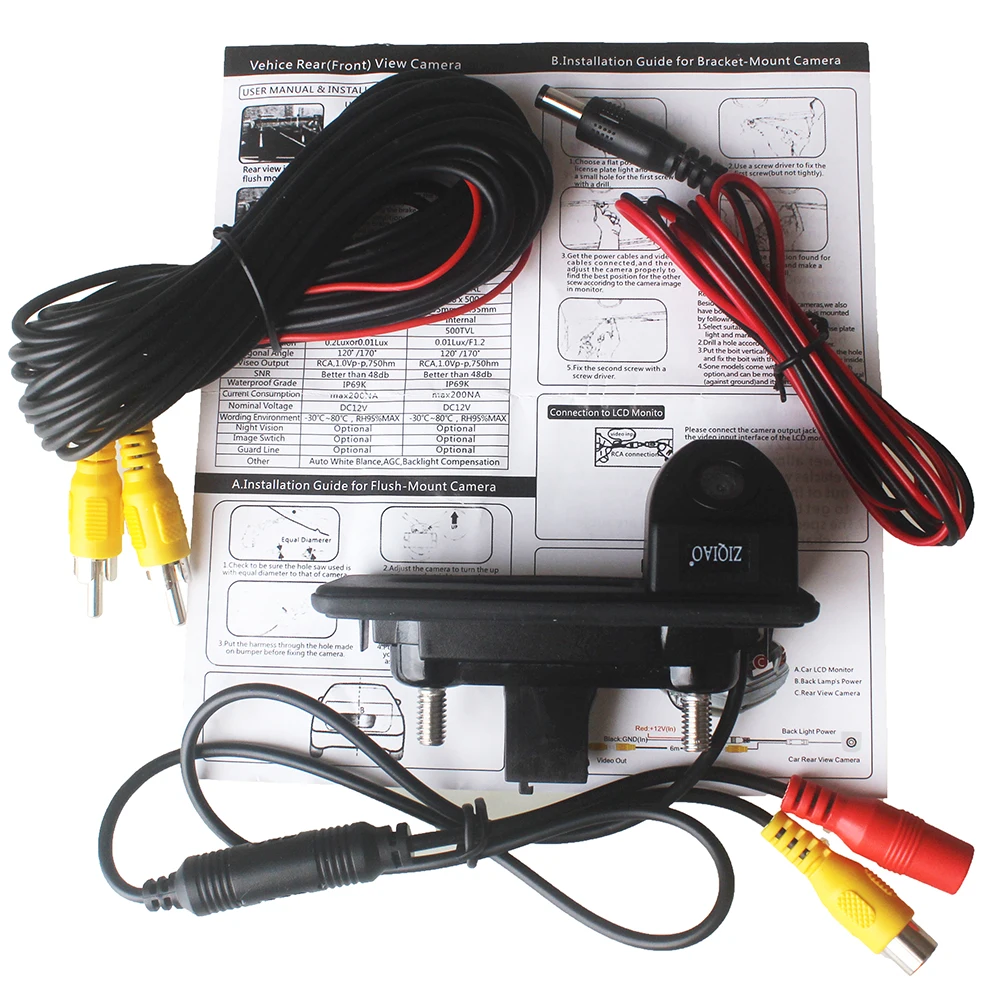

Packing list:
1 x Car rear view camera
1 x 6m Video cable
1 x 1m Power cable
1 x User manual

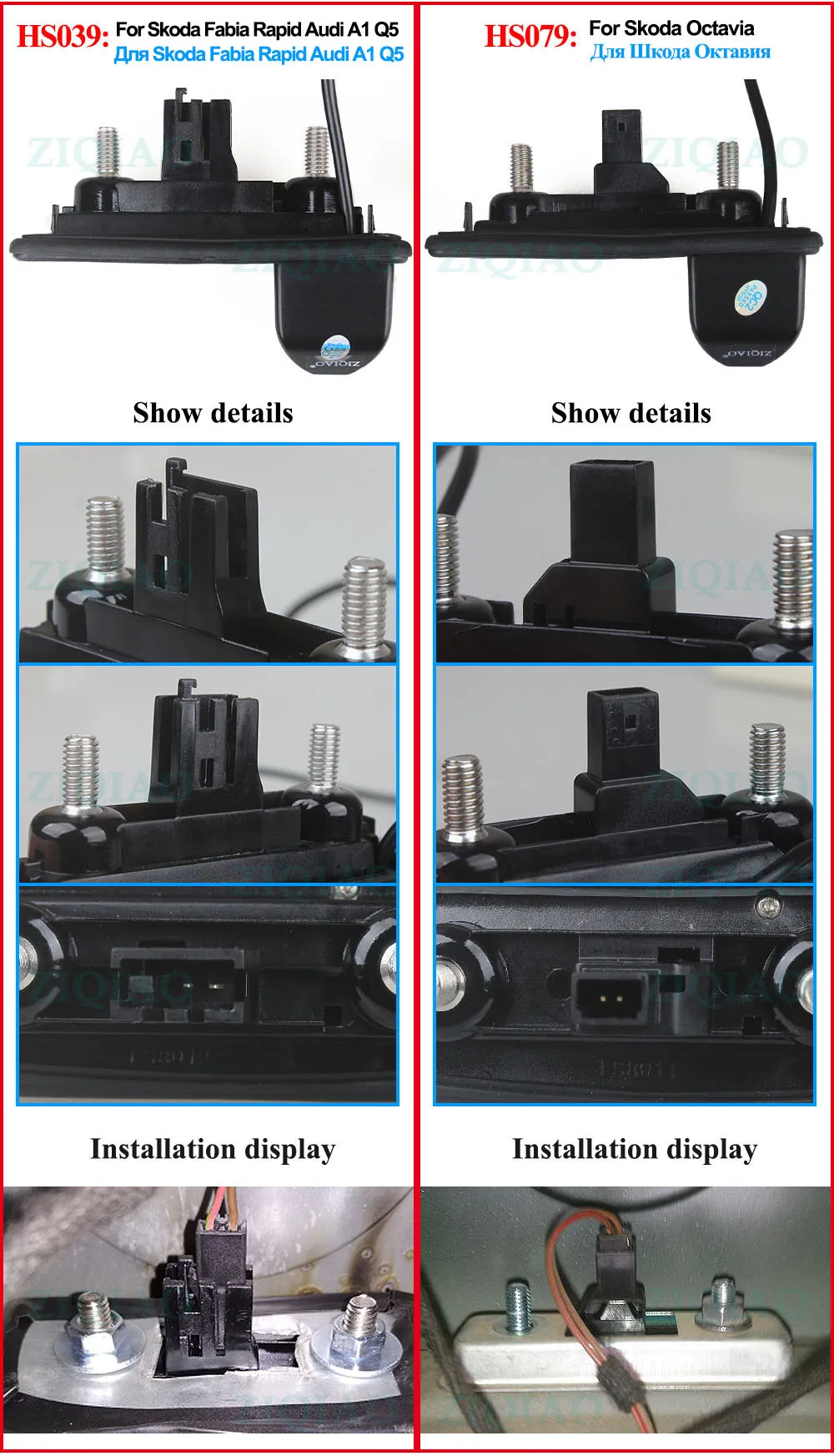

HS039 VS HS079
If you need a filter rectifierto make the video signal output normal. Please click on the picture below to learn about ordering!
In some models of German and American cars, after engine starting, the output voltage is disturbed. Instead of pure direct current, it powered by impulses superimposed on top oscilloscopes. If can use an oscilloscope to test, you will find that the camera power supply line is directly on the reversing light, because of working voltage unstable cause the camera doesn’t work, the output of the video signal is not normal, so you will see on the screen display has serious interference, shaking or can not switch back.
Avoid Danger:

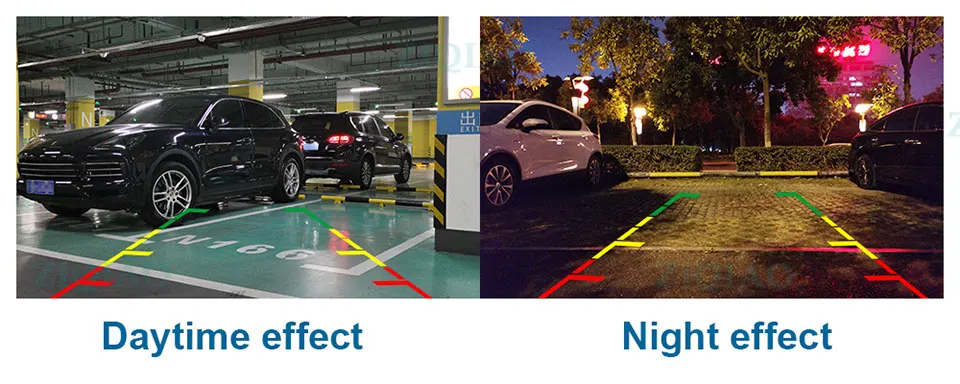

Rear view camera is clearly visible day and night, allowing you to park safely.
Note Importante:
The camera is without lines, if you need camera with parking lines, then you can cut the white wire. Two functions for your choice, Thanks!
If you don’t want to use long video cable. We have wireless transmitter and receiver for rear view camera to replace video cable. Click the following picture to order.

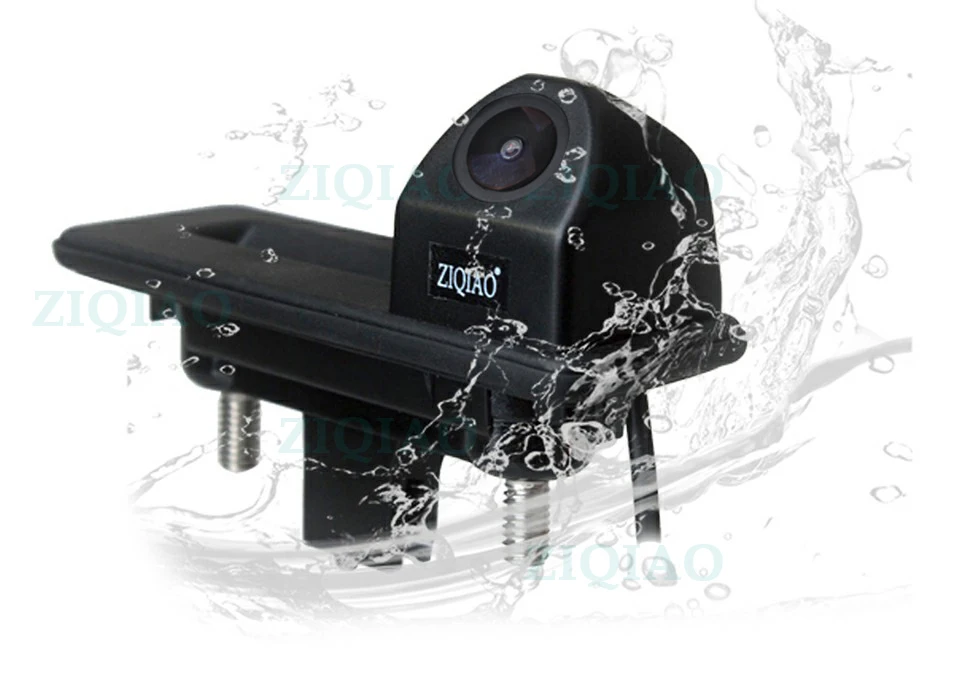

Waterproof Level: IP68
IP68 high-grade waterproof design for use in extreme conditions.

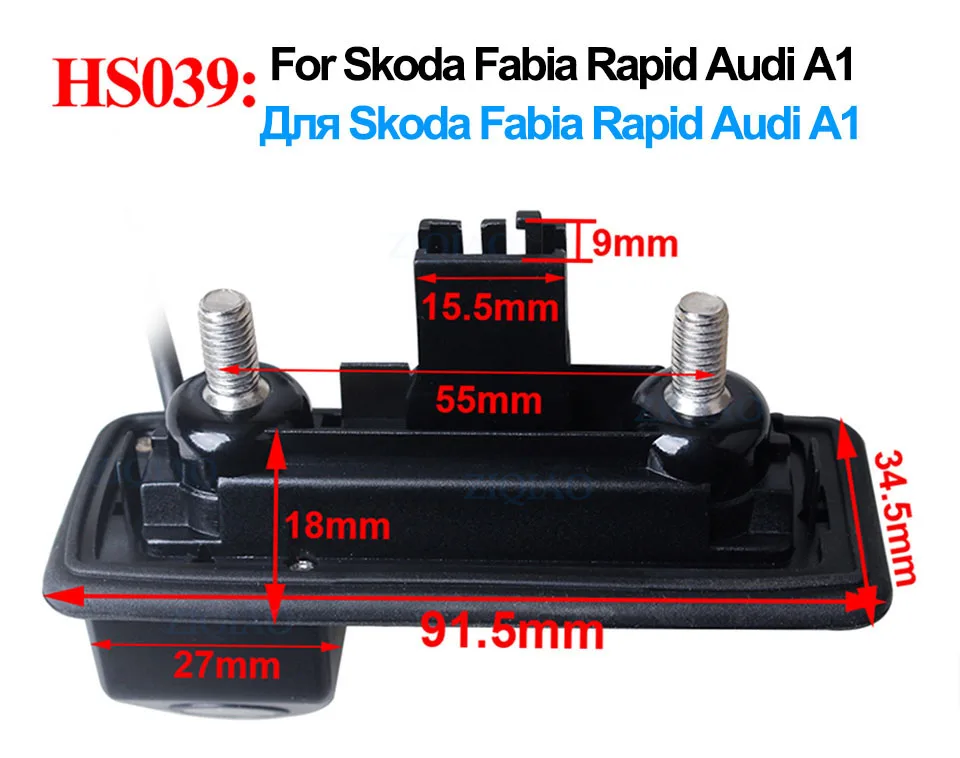

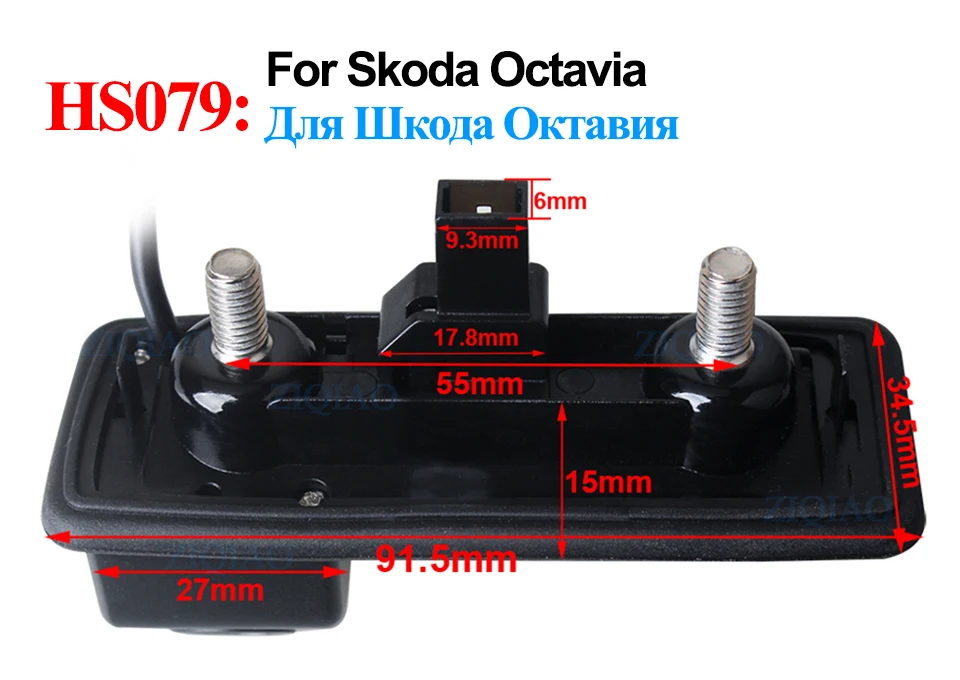

Product Size:
Due to manual measurement, there may be an error of 1-2 mm.
HS039: For Audi A1 and Skoda Fabia Superb Rapid
HS079: For Skoda Octavia

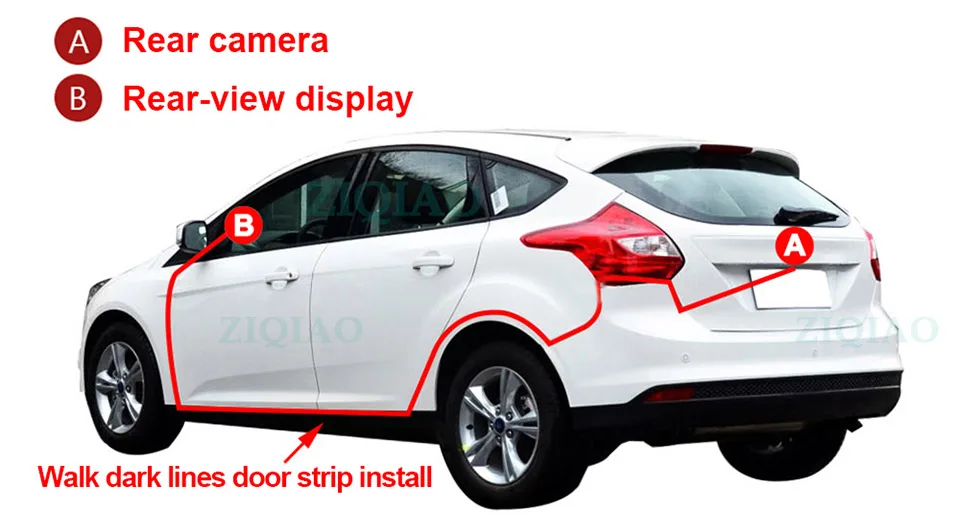

Installation Method:
The installation instructions are for reference only. It is recommended that a professional installer install the camera.

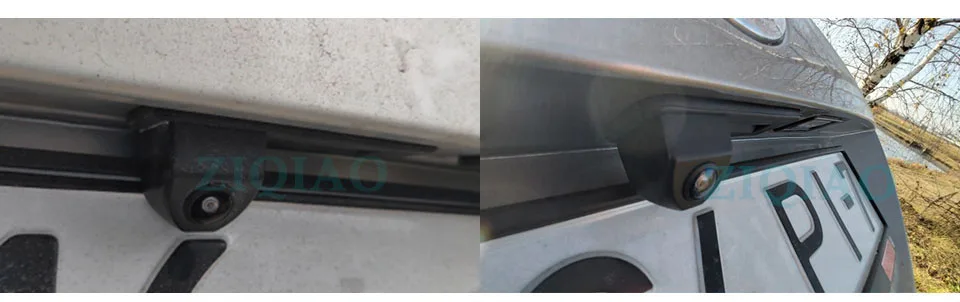

1. Install the camera in the area of your car license plate light.
2. Adjust the lens of the camera to your best position.

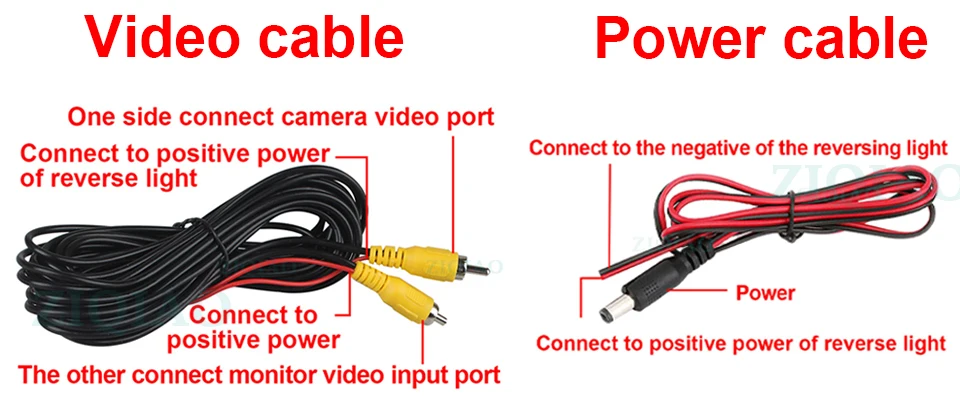

3. Connect the video output(yellow wire) to the monitor.
4. Connect the power cable(red and black) to the power supply of the car’s reversing light, while reversing, the reversing monitoring system automatically start working, you can see the condition of the car tail clearly.
About Us:

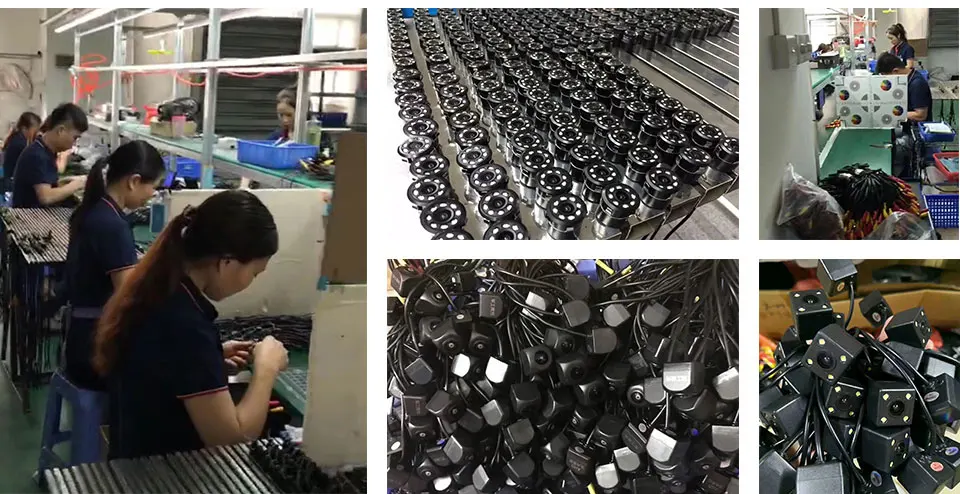

1. Our products must be strictly tested before being sent, and the products can only be sent to customers after they are proved to be intact.
