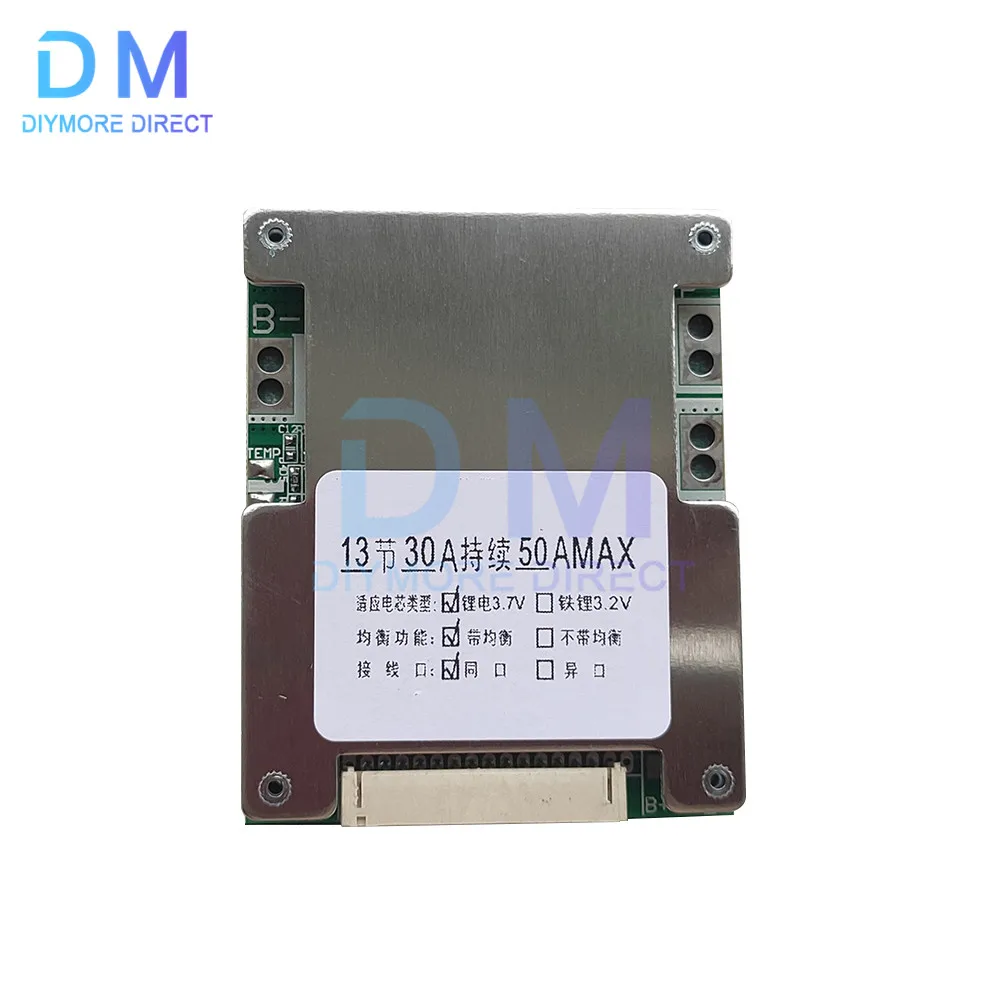

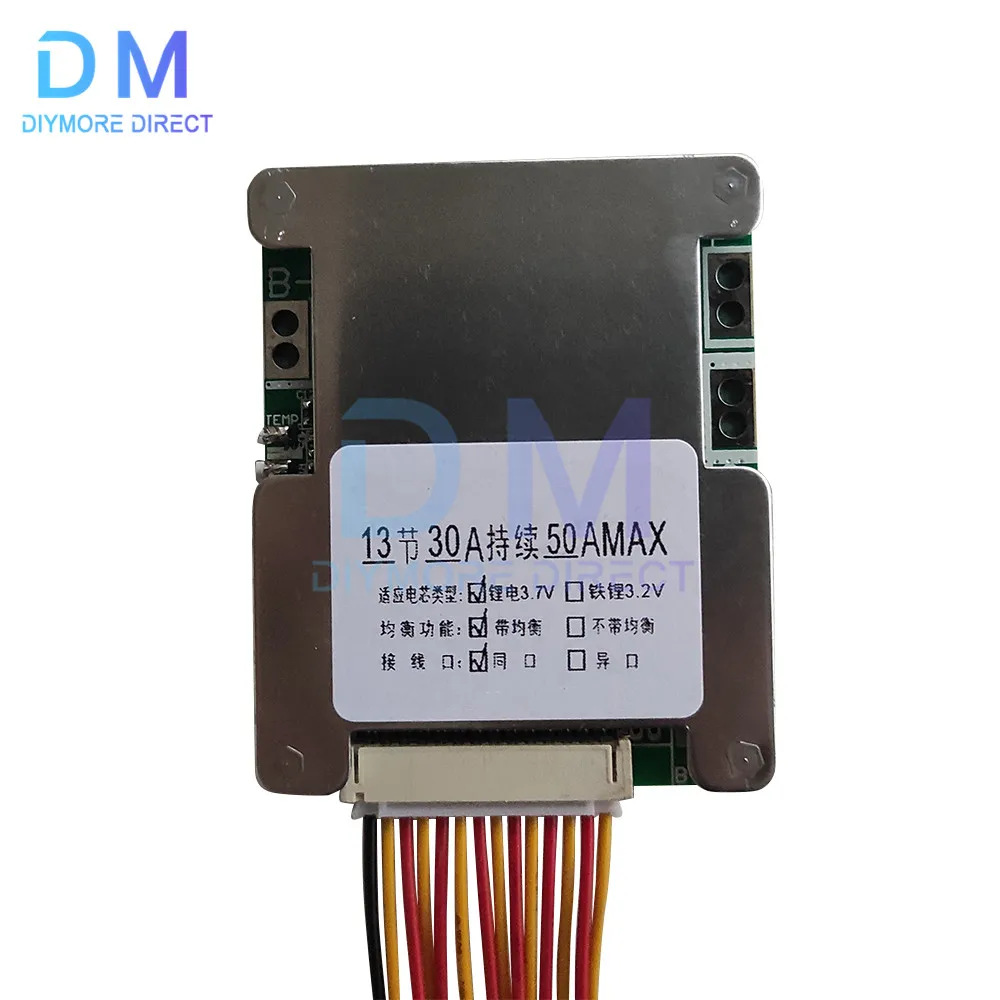

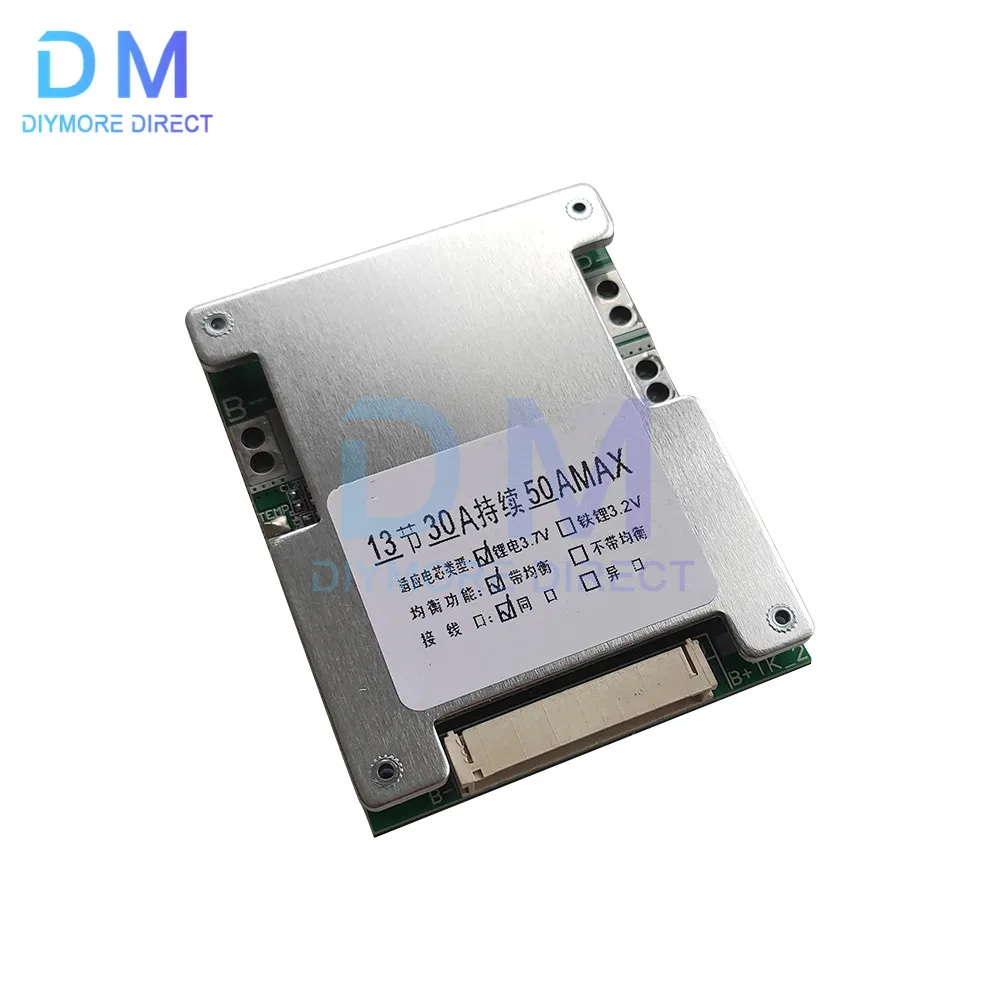

13S 48V 50A 18650 Li-ion Lithium Battery Pack BMS Protection PCB Board Consumer Electronics

13S 48V 50A 18650 Li-ion Lithium Battery Pack BMS Protection PCB Board Consumer Electronics

Features.

Suitable for 3.7V ternary, lithium cobaltate, lithium manganate batteries.

Applicable voltage power: 48V, less than 2500W

Overcharge protection

Over-discharge protection

Over-current protection

Output short circuit protection

Product parameters.

Model: 13S 48V/50A with port

Applicable voltage power: 48V <2500W

Applicable battery type: 3.7V ternary battery lithium cobalt acid lithium manganate battery

Function description: Lithium battery – overcharge protection; over discharge protection; over current protection; output short circuit protection

Maximum operating current: 50A MAX

Maximum continuous working current: 40A MAX

Over-discharge protection voltage: 2.6V

Overcharge protection voltage: 4.25V

Charging current: 40A MAX

Equalization charging function: with this function Equalization voltage 4.2V

Application areas: electric car; twisting car; electric power-assisted car; scooter; inverter, etc.

Shipping list.

Li-ion battery protection board X1

Sampling cable X1
