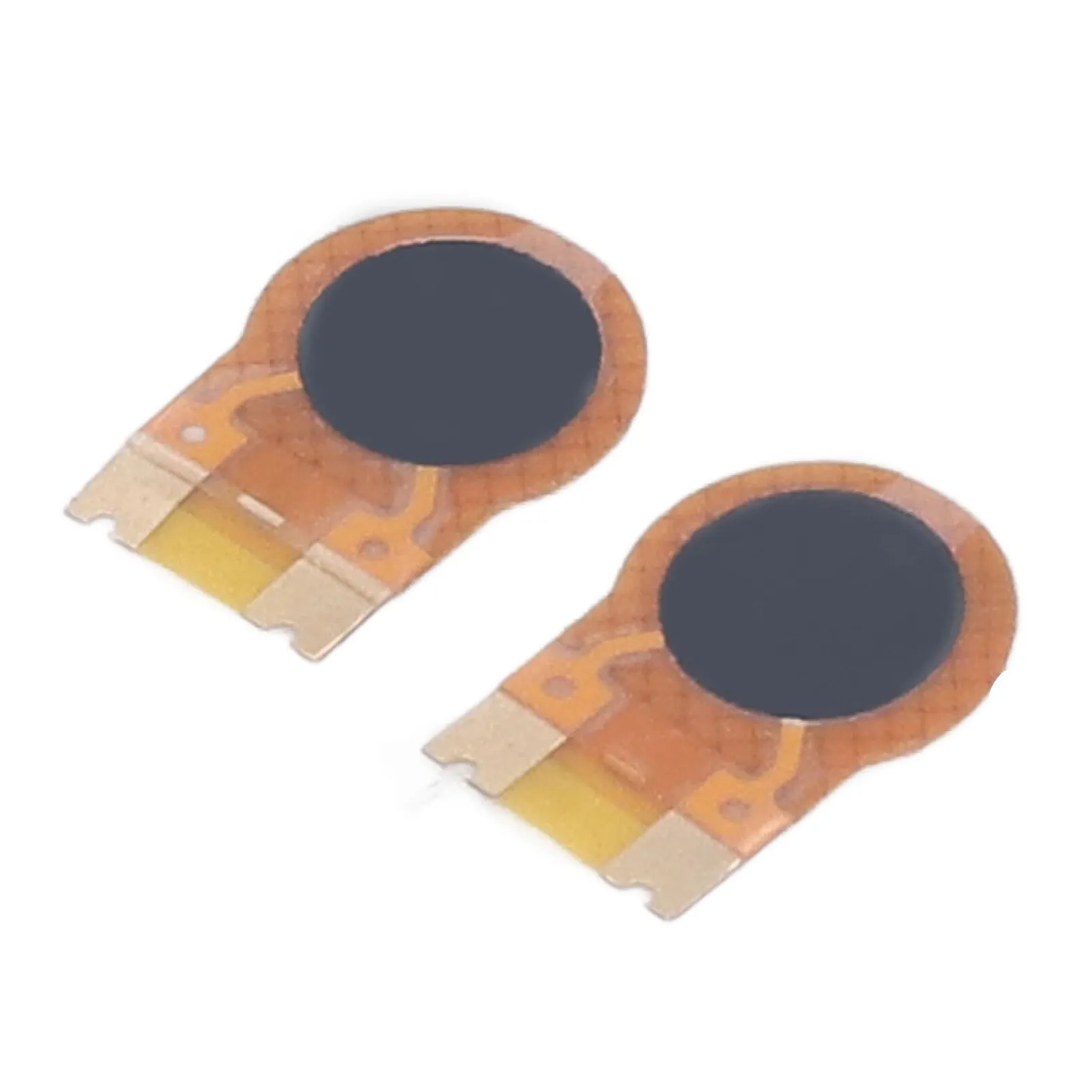

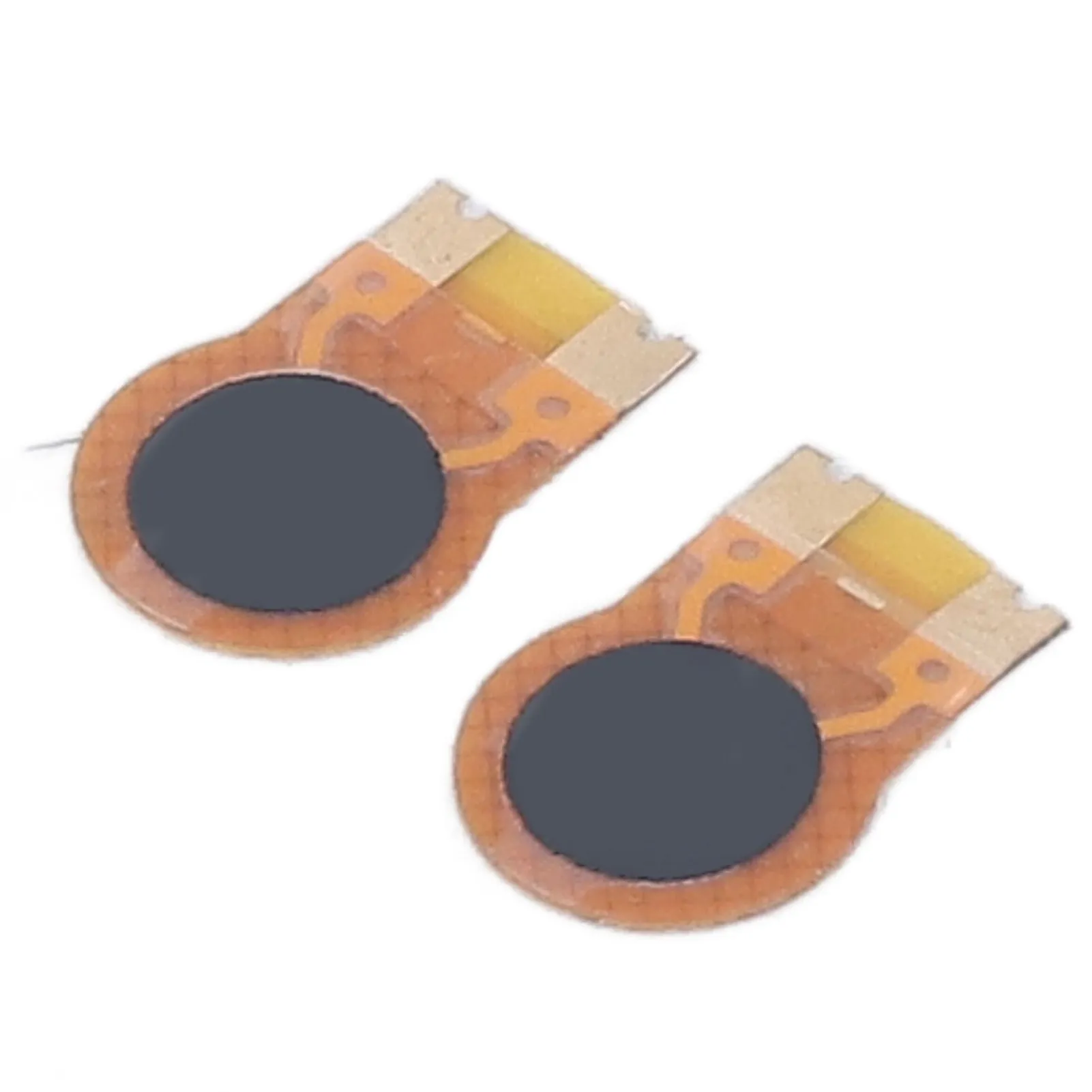

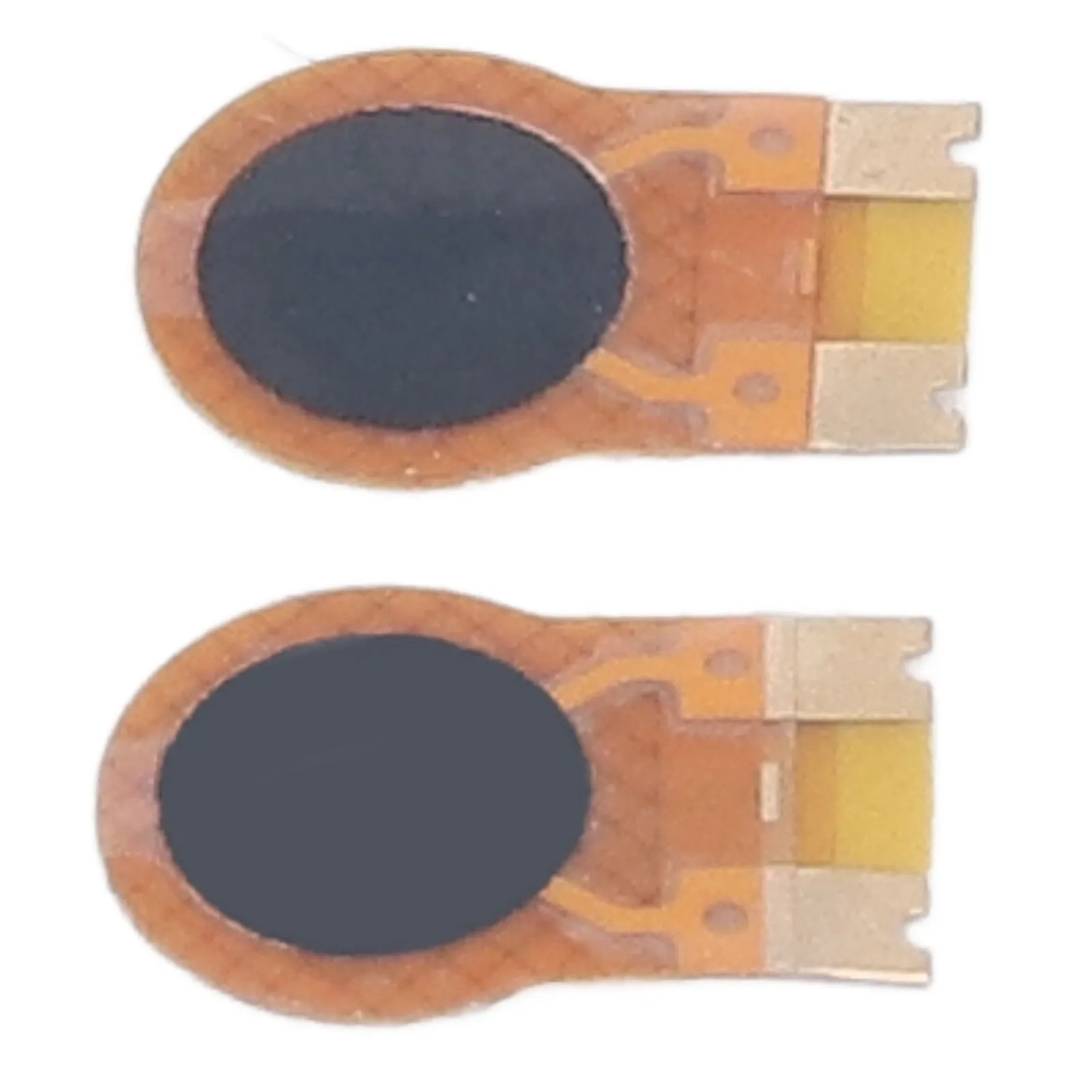

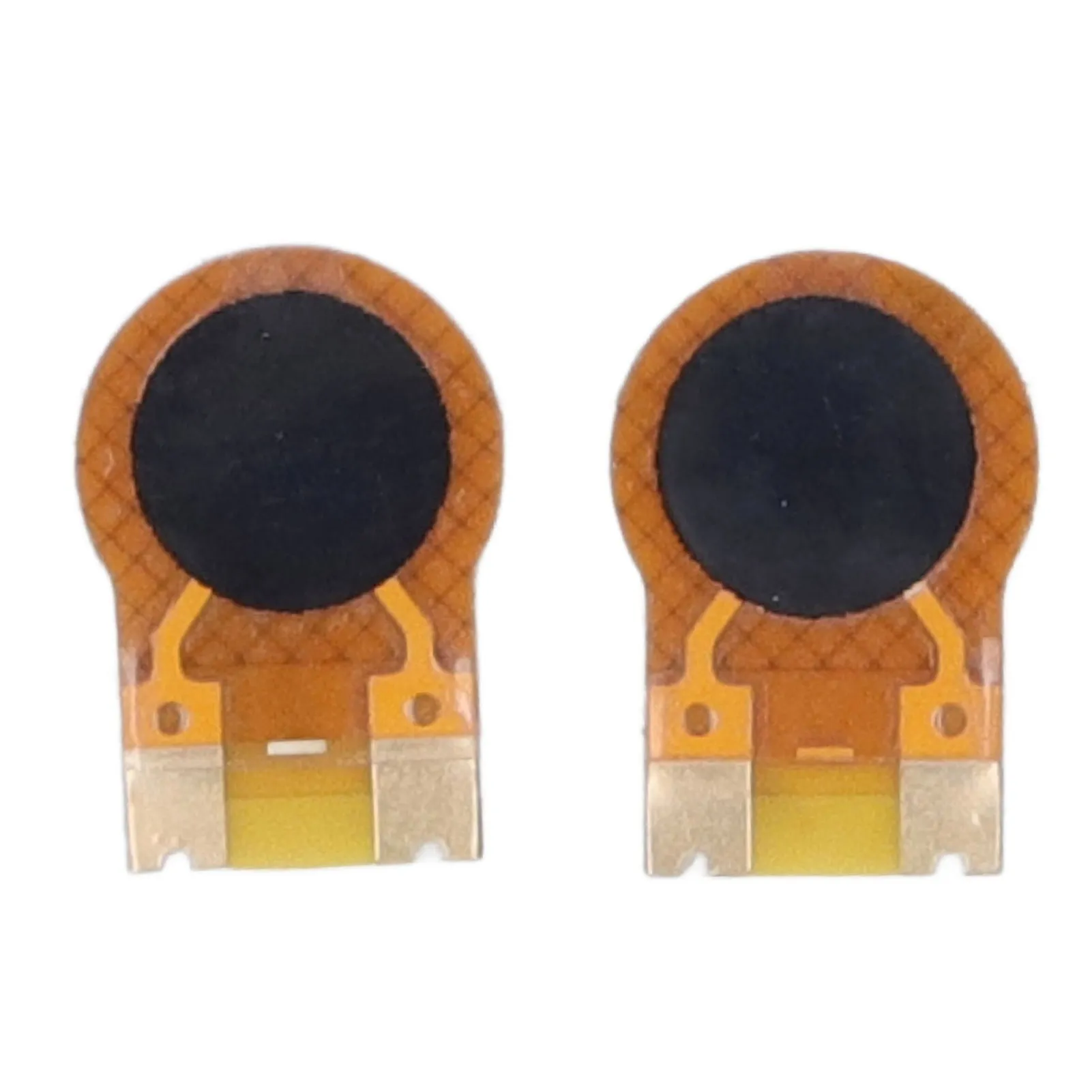

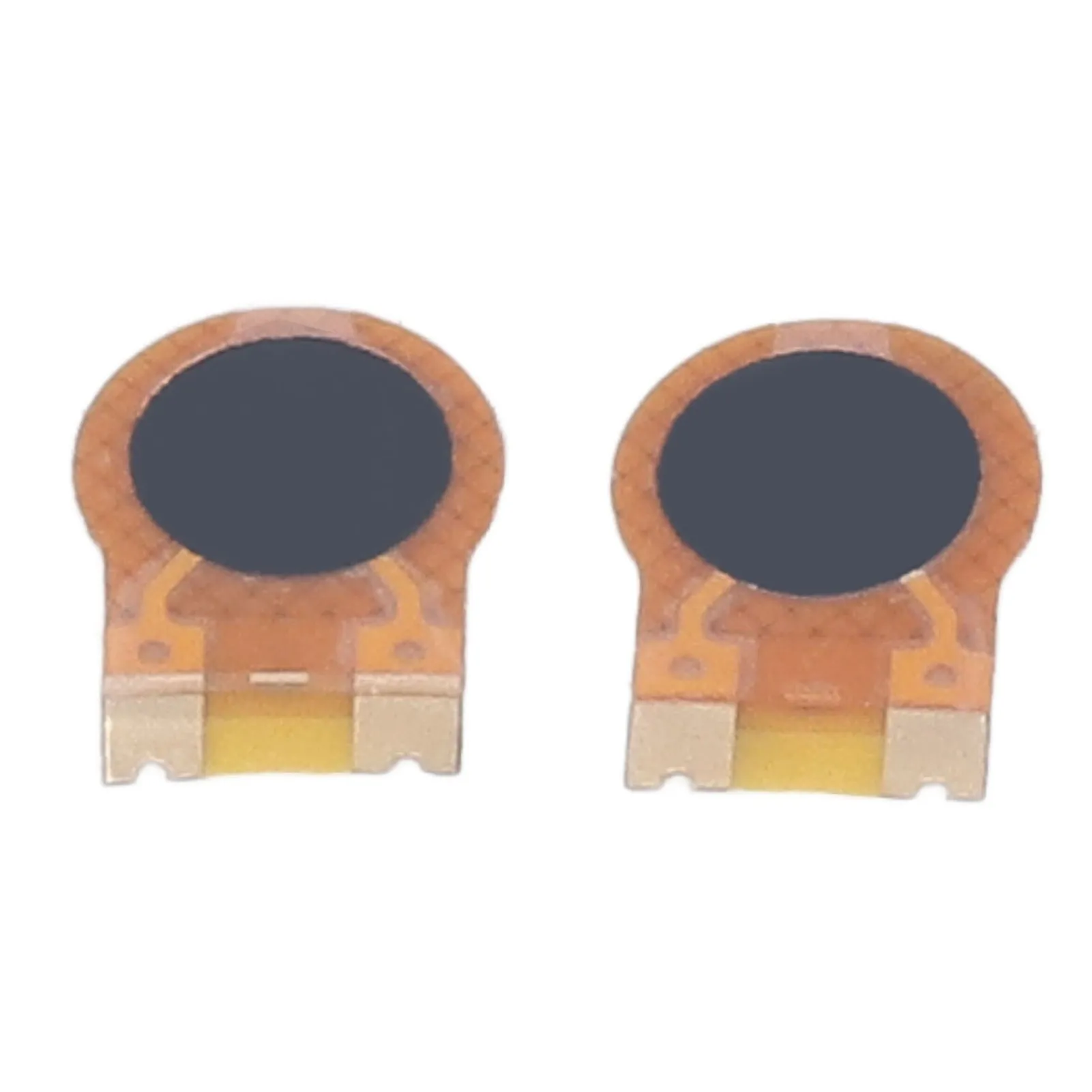

Thin Film Pressure Sensor Contact Pressing Flexible Force Sensor 5g To 2kg Replacement Quick Response for Consumer Electronics
€4.02 €7.82
Thin Film Pressure Sensor Quick Response Static and Dynamic Pressure Sensing Force Sensitive Resistor
2. OPERATING PRINCIPLE: A single sensing zone sensor is equivalent to a dual port variable resistor whose resistance value is controlled by pressure, and it is also equivalent to a switch with a certain threshold value, which is jointly determined by the pressure and equipment parameter setting.
3. FINE WORKMANSHIP: The sensor is composed of polyester film with excellent comprehensive mechanical properties, strong conductivity FPC material, and nanoscale pressure sensitive material. The top layer is a flexible film and a composite pressure sensitive layer on top, while the bottom layer is a flexible film and a composite conductive circuit on top.
4. USE DETAILS: Two are bonded and isolated from the sensing area through double sided tape( not included). When the sensing area is under pressure, the lines that are disconnected from each other at the bottom layer will conduct through the top layer of the pressure sensitive layer, and the resistance output value of the port will change with the pressure.
5. EXCELLENT PERFORMANCE: Film pressure sensor has static and dynamic pressure sensing and quick response speed, has long durability and lifespan.
Specification:
Item Type: Thin Film Pressure Sensor
Mode: RF C7.6 L11 LF
Material: Polyester, FPC
Basic Parameters:
Thickness: Approx. 0.25mm / 0.01in with rear ADH
Driving Force: Approx. 2 g / 0.1 oz, Res less than or equal to 500 Κ Ω
Pressure Range: Approx. 5g to 2kg / 0.2oz to 4.4lb
Mode of Action of Pressure: Contact pressing
Resistance When not Triggered: Greater than 10M Ω
Activation Time: Less than 10mS
Package List:
2 x Sensor
