Hi-Link HLK-40M12 AC DC Isolated Power Supply Module 40W 220V to 12V 3.3A Output Consumer Electronics Smart Home
€5.32 – €5.76
Welcome to my store!
Hi-Link is the manufacturer of ac dc&dc dc power module,radar sensor module and wifi router module for many years.We are committed to making each intelligent product more convenient, faster and more reliable and providing customers with safe, high-quality and reliable products is our eternal pursuit.
If you need samples, please feel free to contact us.
If you need more, please let us know. we will give you our best price.

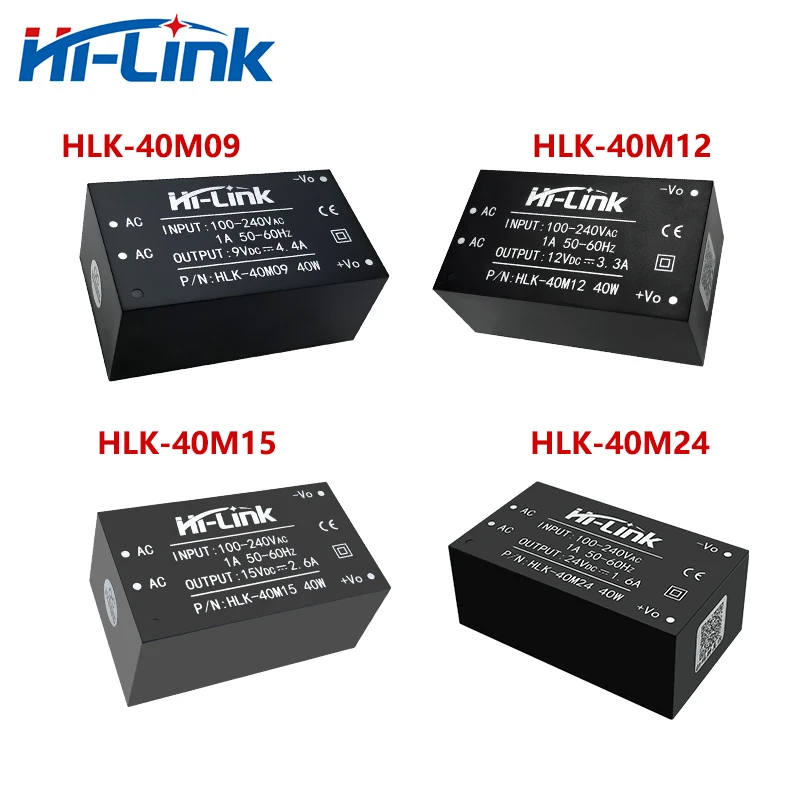

HLK-40M09/12/15/24
|
Module mdoel |
Size(mm) |
Output power(W) |
Output voltage(V) |
Output current(mA) |
|
HLK-40M09 |
56*32*22.5 |
40 |
9 |
4400 |
|
HLK-40M12 |
12 |
3300 |
||
|
HLK-40M15 |
15 |
2600 |
||
|
HLK-40M24 |
24 |
1600 |
|
Items |
Technical Parameters |
Units |
Notes |
|
Working temperature |
-25—+60 |
℃ |
|
|
Storage temperature |
-40—+80 |
℃ |
|
|
Relative humidity |
5—95 |
% |
|
|
Thermal methods |
Natural cooling |
||
|
Atmospheric pressure |
80—106 |
Kpa |
|
|
Altitude |
≤2000 |
m |
|
|
Vibration |
Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes |
Meets requirements for secondary road transportation |
|
Items |
Technical Parameters |
Units |
Notes |
|
Rated input voltage |
100-240 |
Vac |
|
|
Input voltage range |
85-264 |
Vac |
Or 70-350Vdc |
|
The maximum input current |
≤0.9 |
A |
|
|
Input inrush current |
≤50 |
A |
|
|
Input low start |
≤50 |
mS |
|
|
Long-term reliability |
MTBF≥100, 000 |
h |
|
|
External fuse recommended |
2A/250Vac |
Slow blow |
