Water Oil Fuel Gas Air Pressure Sensor Transducer (1/4NPT 1/8NPT) 5-12V 0.5-4.5V 0-300Bar Gauge Optional Consumer Electronics
€13.40 €19.89
The default output signal is 0.5-4.5V！
Please note the other output signal that you need, and also please let me know!
Thank you!
Descriptions
XDB302 series of pressure transmitters adopts ceramic pressure sensor core, all stainless steel package, suitable for most media, with good long-term stability, it can be used in various environments and climates, so it is widely used in various fields.
Features
◆ CE conformity
◆ Low cost and high quality
◆ All carbon steel alloy integrated structure
◆ Small size, convenient to install and operate
◆ 0.5-4.5V，0-5V，1-5V，0.4-2.4V，I2C，various voltage output
◆ Complete surge voltage protection function
◆ For applications such as air, water, oil
◆ Provide OEM, flexible customization
Applications
◆ Intelligent IoT constant pressure water supply
◆ Engineering machinery, industrial process control and monitoring
◆ Energy and water treatment systems
◆ Steel, light industry, environmental protection
◆ Medical, agricultural machinery, testing equipment
◆ Flow measurement equipment
◆ Hydraulic and pneumatic control systems
◆ Air-conditioning unit and refrigeration equipment
◆ Water pump, air compressor pressure monitoring
Parameters
|
Measuring range |
0 – 30Mpa (optional) |
|
Accuracy |
±1.0%FS |
|
Output signal |
Default 0.5-4.5V, other(0-5V, 1-5V, 0.4-2.4V, I2C) |
|
Supply voltage |
5 or 12VDC |
|
Operating temperature |
-40 – 105℃ |
|
Compensation temperature |
-20 – 80℃ |
|
Operating current |
≤3mA |
|
Temperature drift (zero & sensitivity) |
≤±0.03%FS/℃ |
|
Long-term stability |
≤±0.2%FS/year |
|
Response time |
≤3ms |
|
Overload pressure |
150%FS |
|
Burst pressure |
300%FS |
|
Cycle life |
500,000 times |
|
Pressure connection |
1/4NPT or 1/8NPT |
|
Electrical connection |
Direct cable |
|
Housing material |
304 Stainless steel |
|
Protection class |
IP65 |
|
Explosion-proof class |
ExiaⅡCT6 |
|
Weight |
≈0.080kg |
|
Pressure medium |
Non-corrosive liquid or gas |
Product Detail

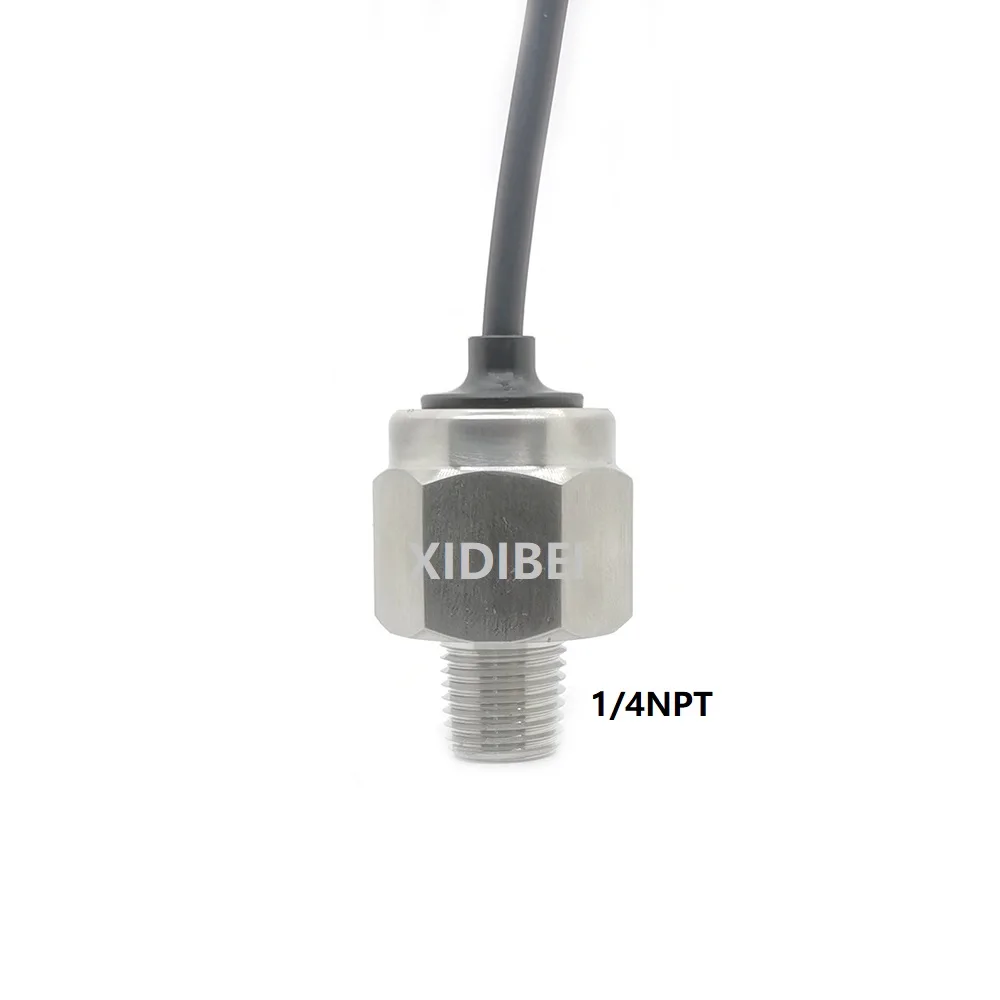

Thread : 1/4NPT

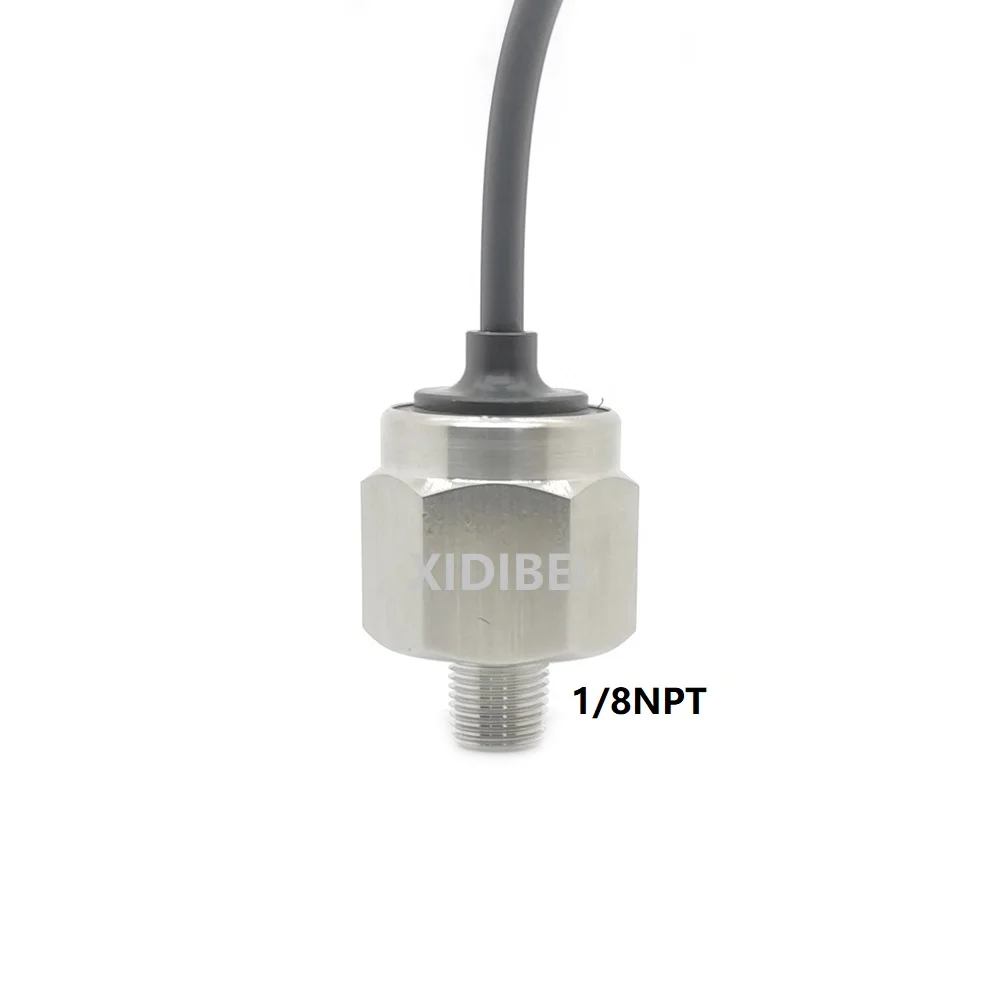

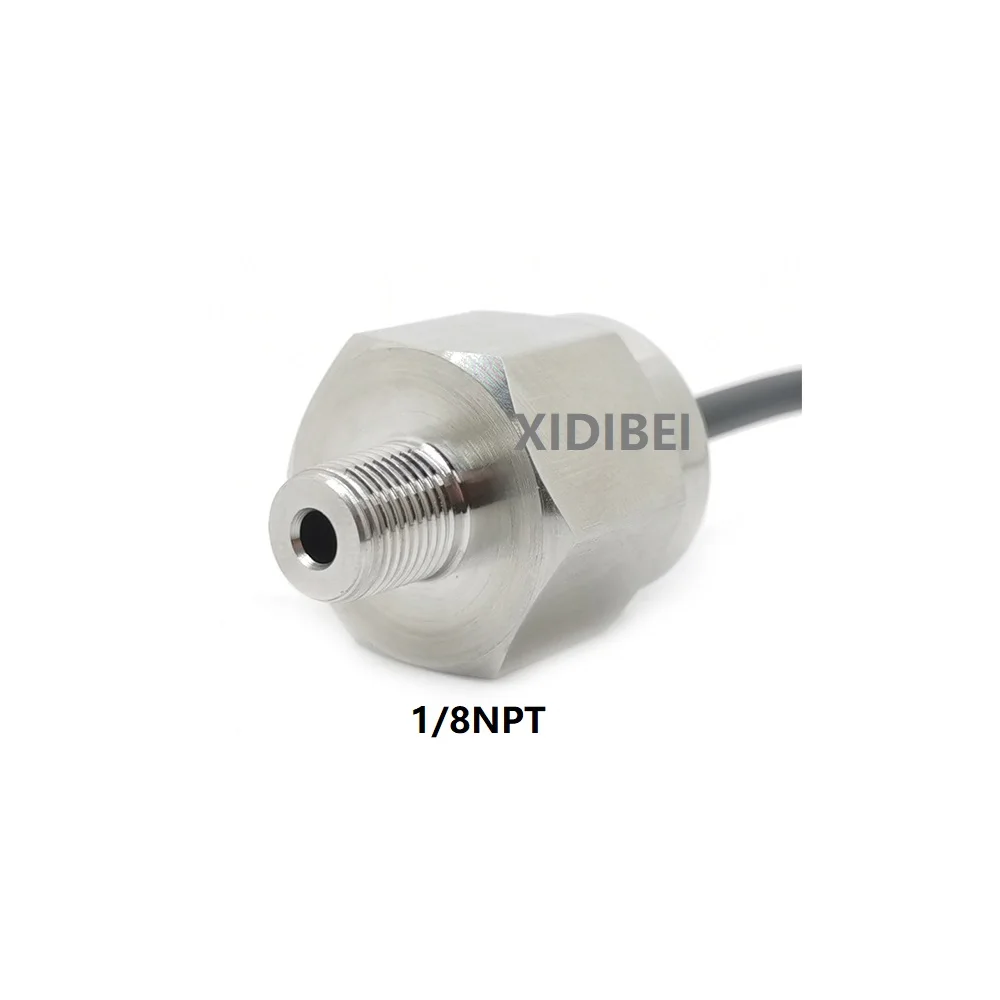

Thread : 1/8NPT
Electrical connection
CE Conformity
Ordering information
Default cable length: 0.3m / 11.8inch
If you have other special requirements, please CONTACT US and NOTE in the order.
