HLK-LD1125H-24G
HLK-LD1125H-24G is a high sensitivity 24GHz millimeter wave human presence detection radar module. Different from traditional radar through detect the large-scale movements of the human body or the small-scale body movements to determine the existence of the human body. The main feature of this module is to detect the tired human breathing and other small-scale movements to determine the existence of the human body. Therefore, the detection of human presence is compared with the traditional mobile detection radar.The accuracy rate is higher. Not easy to miss.

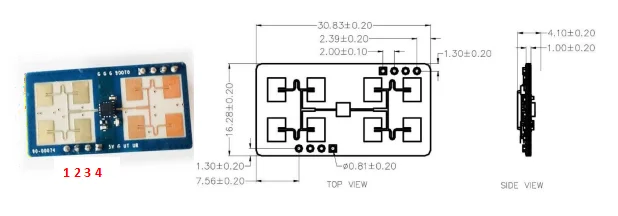

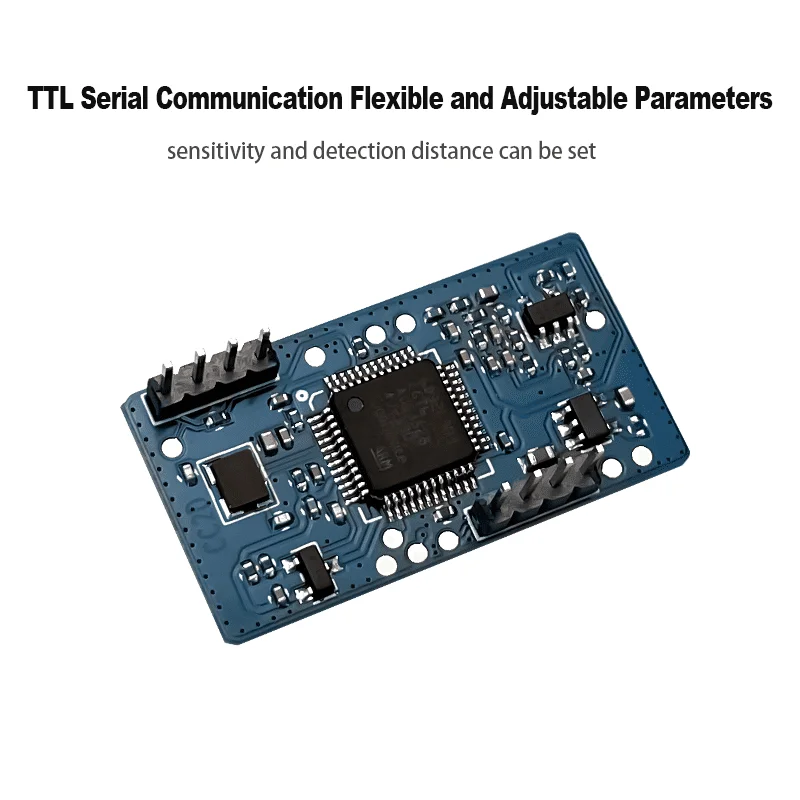

Module Appearance and Interface

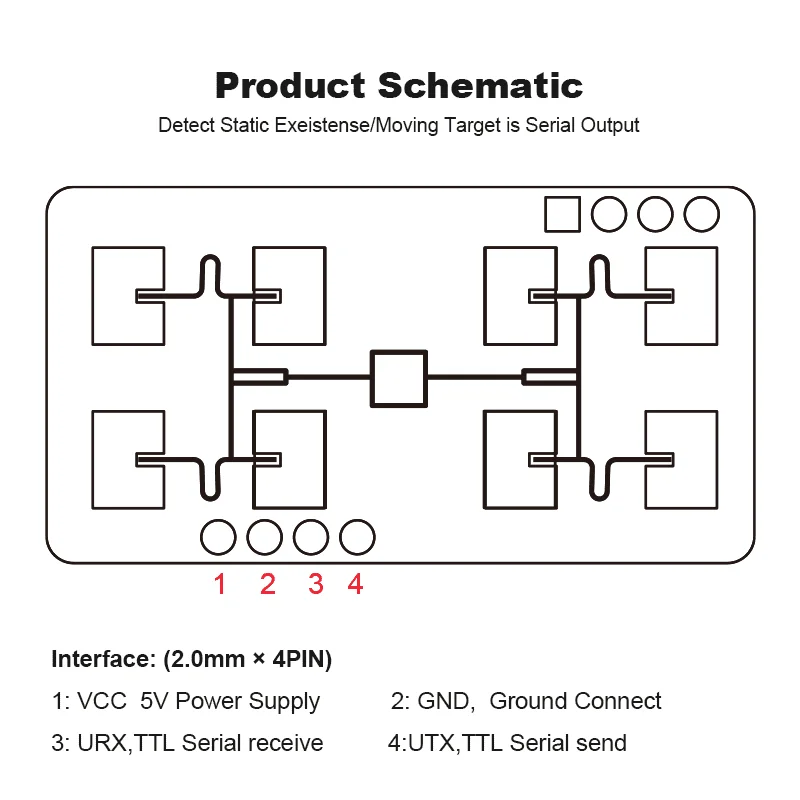

Pin interface definition: (2mm pitch pin header connector is recommended for the interface)
Pin |
Name |
Remark |
1 |
VCC |
Power supply 5V power supply |
2 |
GND |
Touchdown |
3 |
URX |
TTL serial port receive |
4 |
UTX |
TTL serial transmission |

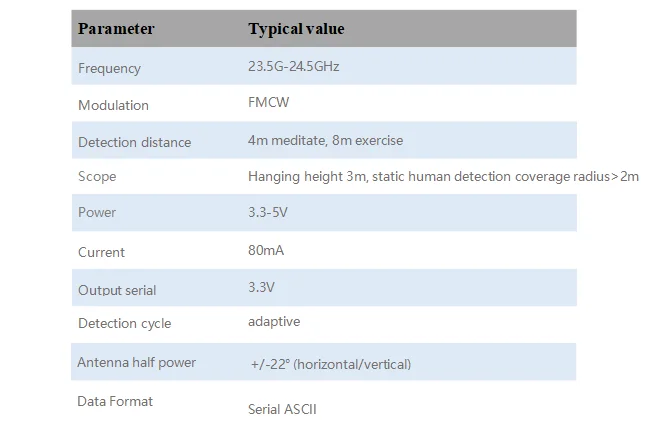

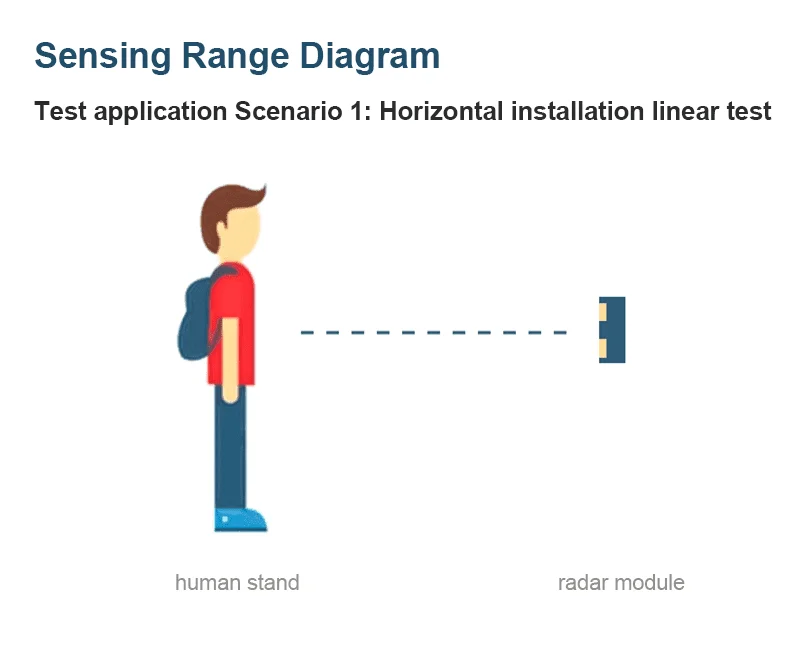

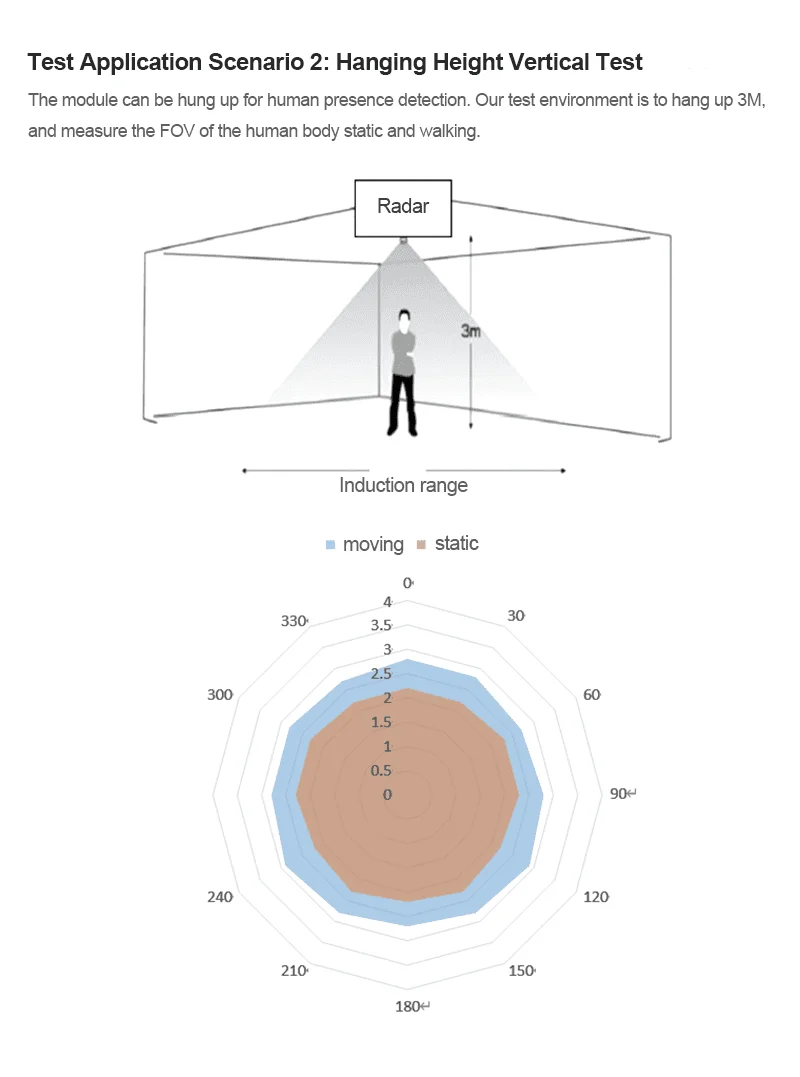

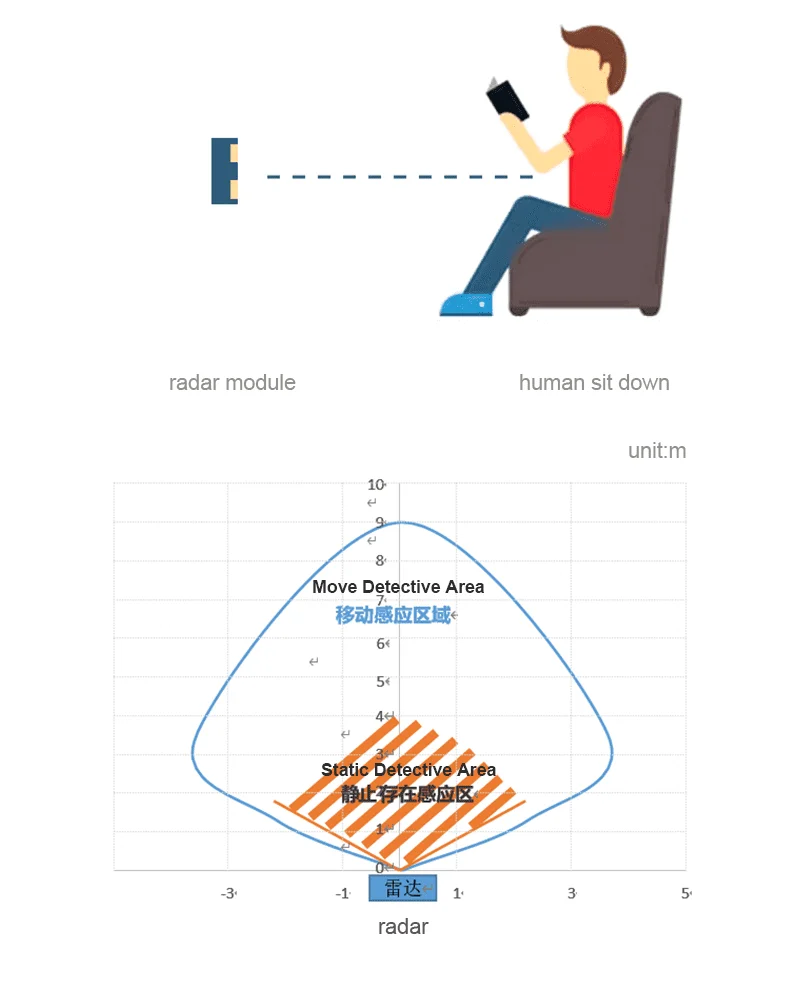

Module Performance
Debug wiring
HLK-LD1125H-24G uses the serial port to output the test results in string format, so in the testing, you can do a quick test evaluation on the serial port assistant firstly.
