Hi-Link HLK-LD2410 LD2410B LD2410C 5V Mini FMCW 24G Smart Human Presence Status Sensor Radar Module Consumer Electronic

Name: Hi-Link HLK-LD2410 LD2410B LD2410C 5V Mini FMCW 24G Smart Human Presence Status Sensor Radar Module Consumer Electronic
SKU: 1005006153961344
Availability: InStock

Add to wishlist

€3.49 – €3.62

Color:

Clear

Description
Reviews

modname=ckeditor

HLK-LD2410

1. Product introduction

This product is mainly used in indoor scenes to sense whether there is a moving or micro-moving human body in the area, and output the detection results in real time. Farthest sensing distance up to 6 meters, distance resolution 0.75m. Provides a visual configuration tool, which can easily configure the sensing distance range and sensing in different intervals sensitivity and unmanned delay time, etc., to adapt to different specific application needs.

2. Product Features

The longest sensing distance is up to 5 meters
Accurate identification within the interval, support the division of the sensing range, and shield the interference outside the interval
Visual debugging and configuration tools
Supports various installation methods such as ceiling hanging and wall hanging
5～12V wide voltage power supply
3. Benefits

1. In addition to being sensitive to moving human bodies, it can also sensitively sense static, micro-moving, sitting and lying human bodies that cannot be identified by traditional solutions;

3. It has good shell penetration and can be hidden in the shell to work without opening holes on the surface of the product, which improves the aesthetics of the product;

4. Hardware Description

Module size: 7mmx35mm, 5 pin holes are reserved in the hardware (the factory default does not match the pins)

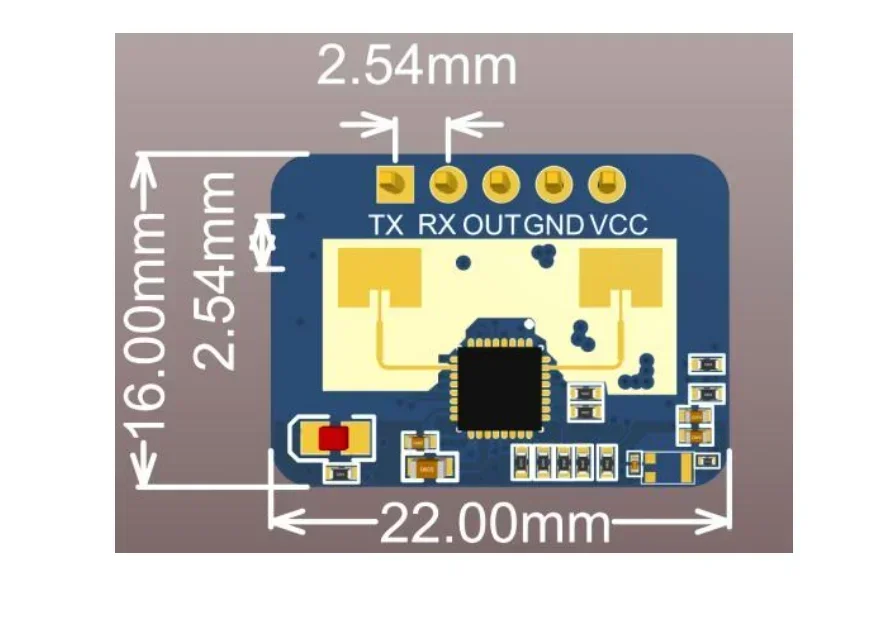

HLK-LD2410C

5. Visual Configuration Tool Description

How to use the host computer tool:
- Select the corresponding serial port number in the host computer tool, set the baud rate to 256000, select the engineering mode, and click to connect the device
- After connecting, if the start button is not clicked, or click stop after starting,the mode parameter information can be read or set

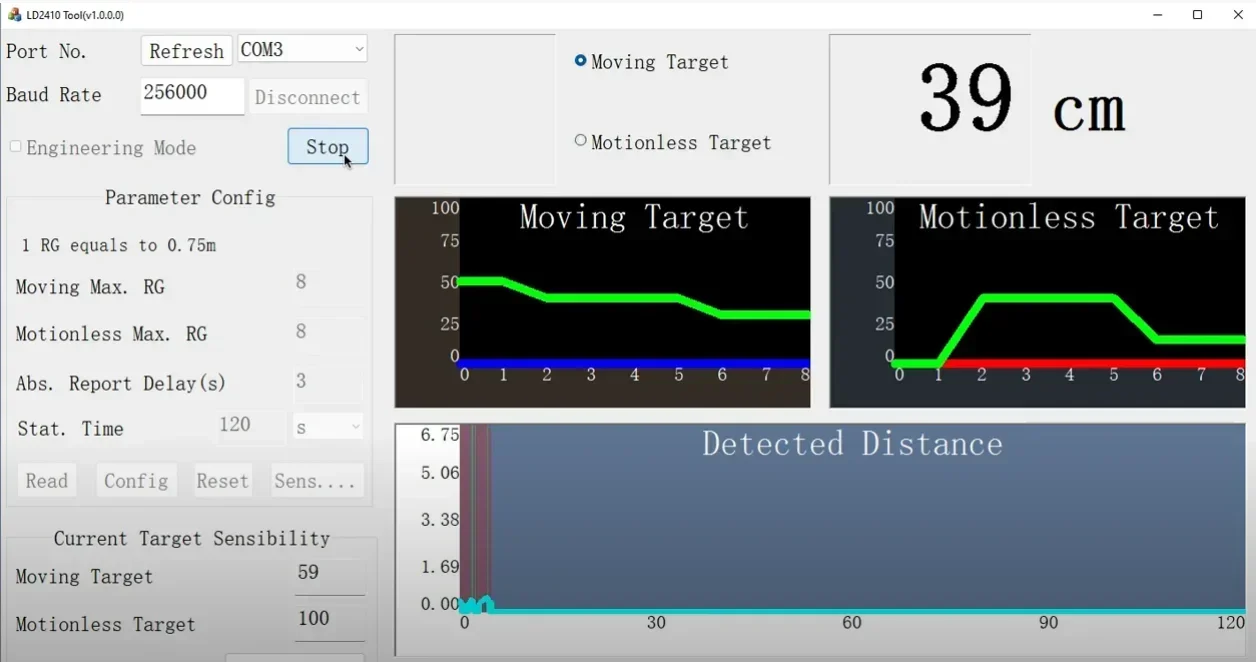

The interface and common functions of the host computer tool are as follows:

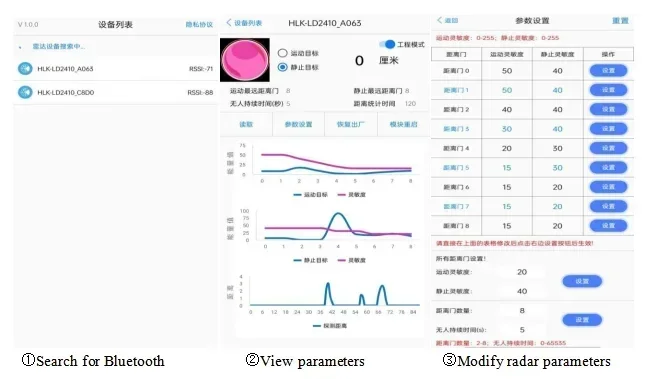

6. Bluetooth instructions (LD2410(BLE) / LD2410C)

Currently the APP supports Android and IOS platforms, you can download it from this link: (Android)

6.2 Instructions

The use distance of the APP should not exceed the Bluetooth signal range (within 4 meters).

6.3 Turn on bluetooth again

*HLK-LD2420<span style="box-sizing:border-box;font-size:20px;max-width:100%;font-family:" outline-width:0px;outline-style:none;margin:0px;outline-color:invert;-webkit-tap-highlight-color:transparent;padding:0px;="" "="">

window.adminAccountId=2677034205;

SKU: 1005006153961344 Category: Consumer Electronics

Based on 0 reviews

0.0 overall

Only logged in customers who have purchased this product may leave a review.

There are no reviews yet.
