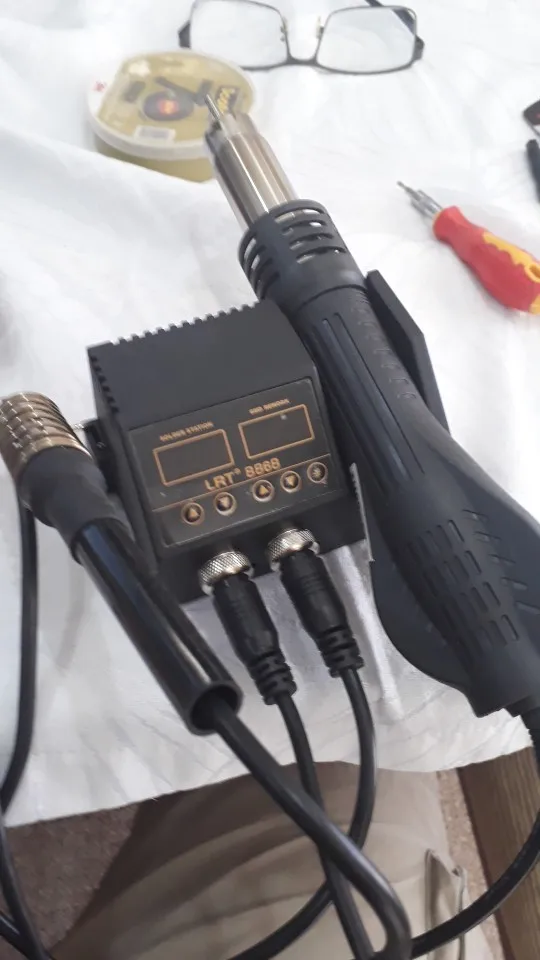

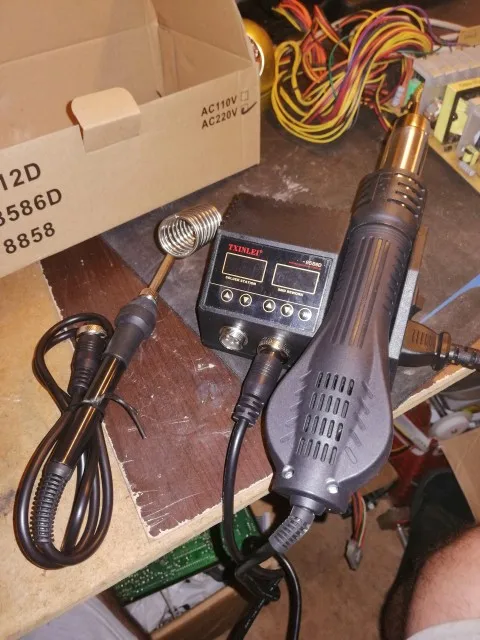

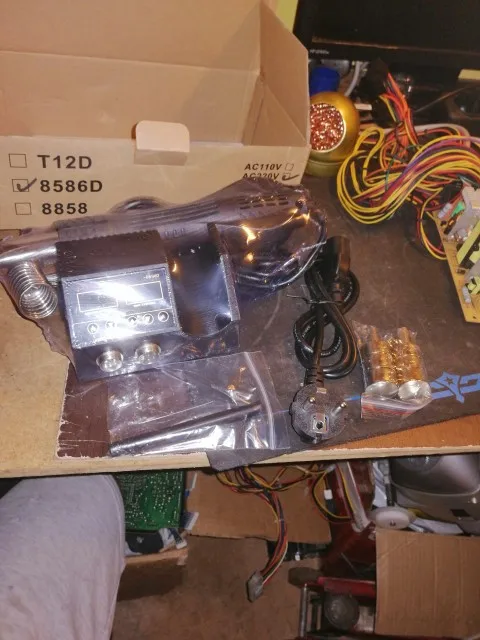

2in1 SMD Soldering Iron Hot Air Rework Station 8586D Desoldering Repair for cell-phone PCB IC solder tools kit

This is a brand new 2in1 SMD Rework Soldering Station 8586D. Alloy metal body with highquality silicone shell features elegant appearance  and power saving. You can use hot air gun and soldering iron separately, with no interference with each other.

Because of the handle with sensor switch, the system can quickly access operating mode while gripping handle.

Meanwhile, the system will transfer to standby mode while handle released. Especially suitable for mounting and  reworking SMD components by hand. Really a must have!

Features:

· Hot air and hot iron 2-in-1 rework soldering station;

· Extremely low noise and space saving design;

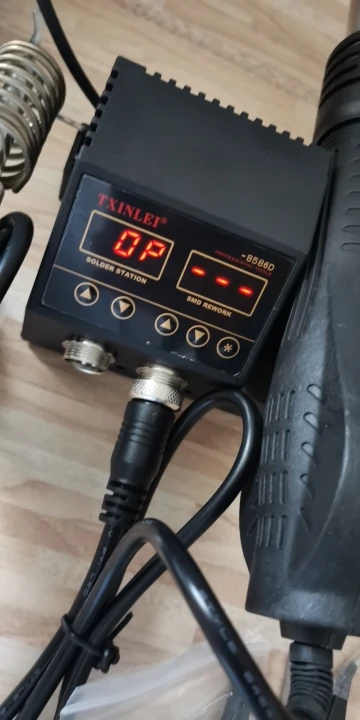

· Dual LCD digital displays to show precision temperature;

· SAMSUNG microcomputer control, quick warming-up;

· PID technology to enhance temperature stability;

· Adjust the airflow and temperature control rotation easily;

· ntelligence self-detection function features safe personal operation;

· Automatically stop rotation when the temperature is less than 70'C

· Handle with sensor switch features access operating mode when picks up or standby mode when lays down;

· Automatic cooling function for effectively prolonging the heater's life and protecting the hot air gun;

· ESD design of soldering iron to protect sensitive components;

· International standard heater for convenient use and exchange;

· High-quality resistance for durable use;

· Plastic holder for placing the hot air gun;

· Metal stand for keeping the iron from flammable materials;

· Fits for heating shrink, drying, lacquer removal, viscidity removal, ice-out, pre-heating and glue soldering;

· Voltage: 110V / 220V .

Rework Unit Sepecification:

Rated Power: 450W

Peak Power : 700W

Resistant : <2Ω

Handpiece Size : <23mm

Temp Stability : ± 1'C

Fan : Brushless ball

Airflow : 120L/min(max)

Noise : <45dB

Temp Control : 100~450'C

Solder Unit Sepecification:

Power : 60 W

Resistant : < 2Ω

Temp Stability : ± 1'C

Iron : ESD design

Heater Material : Nichrome

Temp Control : 200~480'C

Note!

Please read the user's manual before use.

Suitable:

Unsoldering multiple  components, such as SOIC ,CHIP, QFP, PLCC, BGA and temperature-sensitive components(especially for flat cables and cable connectors) ;

Applicable for hot contraction, heating, depainting, degluing, defrosting.  Preheating and rubber soldering, and so forth.

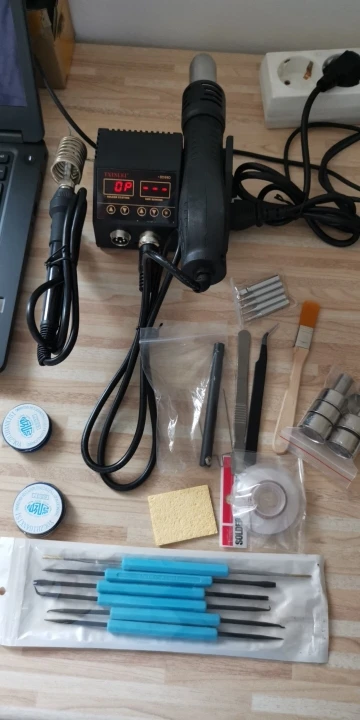

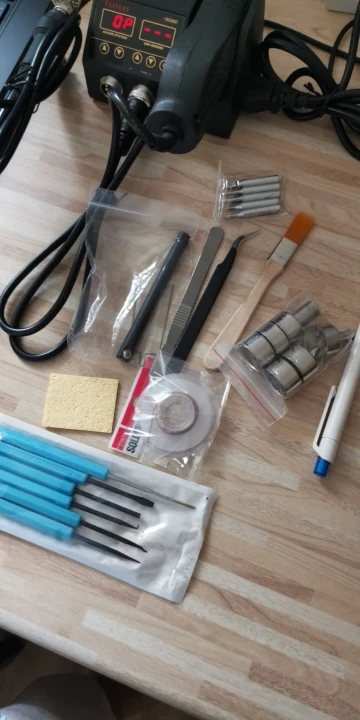

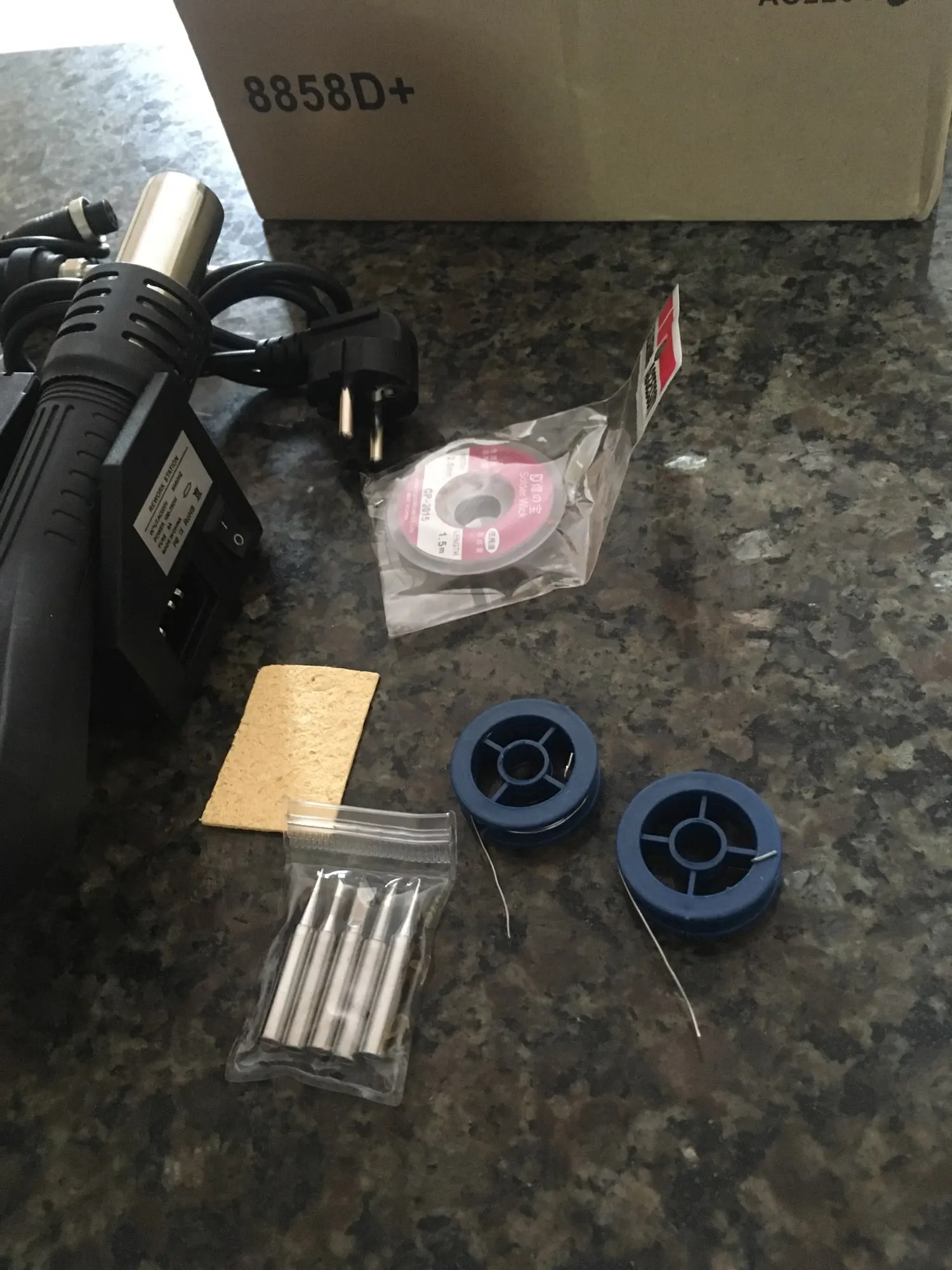

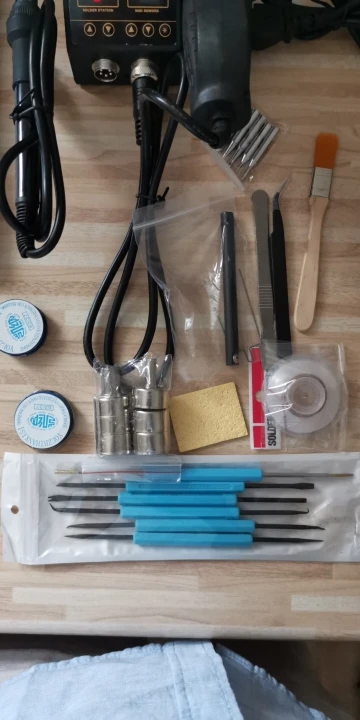

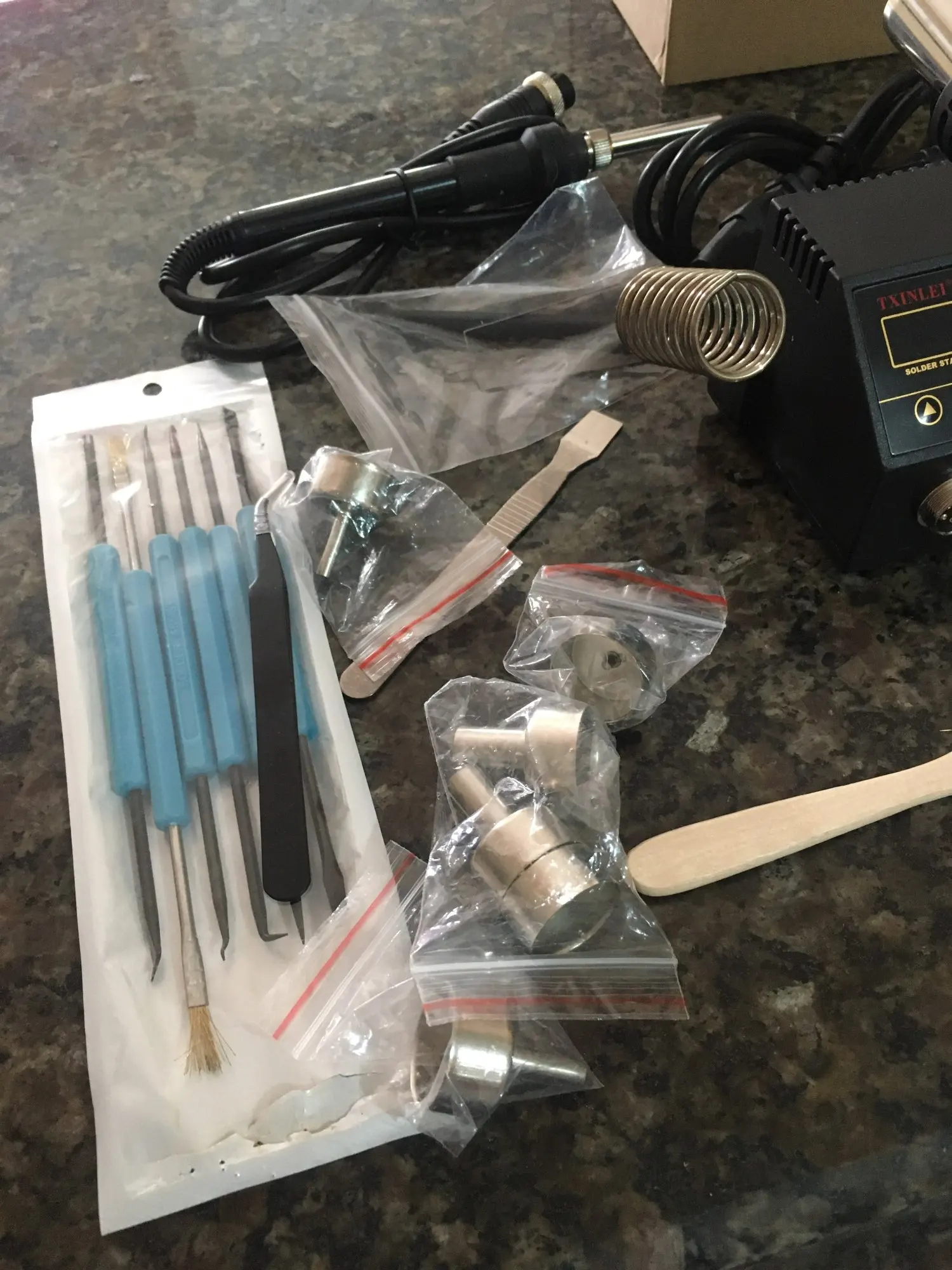

5 x solder tips(K/B/I/2.4D/3C)

5 x solder tips(K/B/I/2.4D/3C)
