Smart Electronics
contec ecg 12 3 channel promotion 7″ Contact Display 6 channel lowest value of ecg machine
$1,287.60
with(doc)with(physique)with(insertBefore(createElement(“script”),firstChild))setAttribute(“exparams”,”userid=&aplus&ali_beacon_id=&ali_apache_id=&ali_apache_track=&ali_apache_tracktmp=&dmtrack_c={}&hn=aeproductsourcesite033003008211percent2ergpercent2duspercent2deastpercent2eus68&asid=AQAAAAA5eARhaT/TagAAAADz8Luyjek6kQ==&sidx=Fzc+BDl4BGH+rFum0uvd1g5c9o2wNMRM”,id=”beacon-aplus”,src=”//belongings.alicdn.com/g/alilog/??aplus_plugin_aefront/index.js,mlog/aplus_v2.js”)
#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;peak:273.6328125px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;peak:273.6328125px}#detail_decorate_root .magic-3{vertical-align:high}#detail_decorate_root .magic-4{vertical-align:high;show:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-5{vertical-align:high;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-6{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-7{margin:0;padding:0}#detail_decorate_root .magic-8{text-align:middle;margin:0;padding:0}#detail_decorate_root .magic-9{coloration:#fd5506}#detail_decorate_root .magic-10{font-size:24px}#detail_decorate_root .magic-11{overflow:hidden;width:750px;peak:379px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:750px;peak:379px}#detail_decorate_root .magic-13{overflow:hidden;width:750px;peak:371px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-14{margin-top:0;margin-left:1px;width:750px;peak:371px}#detail_decorate_root .magic-15{border-bottom-width:2px;border-bottom-style:strong;border-bottom-color:#7a90b2;background-color:#e6f9f2;margin-left:0;margin-right:0;padding-left:8px;padding-right:8px;coloration:#5f6c81;font-family:Roboto;font-size:24px;font-style:regular;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-16{font-size:18px}#detail_decorate_root .magic-18{overflow:hidden;width:750px;peak:701.9359145527369px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:750px;peak:701.9359145527369px}#detail_decorate_root .magic-20{font-size:26px}#detail_decorate_root .magic-21{overflow:hidden;width:750px;peak:667.1105193075898px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:750px;peak:667.1105193075898px}#detail_decorate_root .magic-23{overflow:hidden;width:750px;peak:562.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:749.9999999999999px;peak:562.5px}#detail_decorate_root .magic-25{width:750px;border-collapse:collapse}#detail_decorate_root .magic-26{min-height:28px;padding:5px 10px;overflow:hidden;width:178px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-27{min-height:28px;padding:5px 10px;overflow:hidden;width:523px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:28px;padding:5px 10px;width:178px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:28px;padding:5px 10px;width:523px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-30{min-height:28px;padding:5px 10px;width:372px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-31{show:none}#detail_decorate_root .magic-32{min-height:28px;padding:5px 10px;width:127px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-33{min-height:28px;padding:5px 10px;width:374px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-34{min-height:28px;padding:5px 10px;width:320px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-35{min-height:28px;padding:5px 10px;width:569px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-36{min-height:28px;padding:5px 10px;width:126px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-37{min-height:28px;padding:5px 10px;width:0;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-38{min-height:28px;padding:5px 10px;width:371px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-39{min-height:28px;padding:5px 10px;width:110px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-40{min-height:28px;padding:5px 10px;width:319px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-41{min-height:28px;padding:5px 10px;width:150px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-42{overflow:hidden;width:750px;peak:621.3080168776372px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:750.0000000000001px;peak:621.3080168776372px}#detail_decorate_root .magic-44{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-45{overflow:hidden;width:750px;peak:743.9271255060729px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-46{margin-top:0;margin-left:0;width:750px;peak:743.9271255060729px}#detail_decorate_root .magic-47{margin:0;padding:0}#detail_decorate_root .magic-48{overflow:hidden;width:750px;peak:421.875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-49{margin-top:0;margin-left:0;width:750px;peak:421.875px}#detail_decorate_root .magic-50{overflow:hidden;width:750px;peak:1846px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-51{margin-top:0;margin-left:0;width:750px;peak:1846px}#detail_decorate_root .magic-52{overflow:hidden;width:750px;peak:351.5625px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-53{margin-top:0;margin-left:0;width:750px;peak:351.5625px}#detail_decorate_root .magic-54{overflow:hidden;width:750px;peak:531.8181818181819px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-55{margin-top:0;margin-left:0;width:750px;peak:531.8181818181819px}
Scorching Picks
Product Description

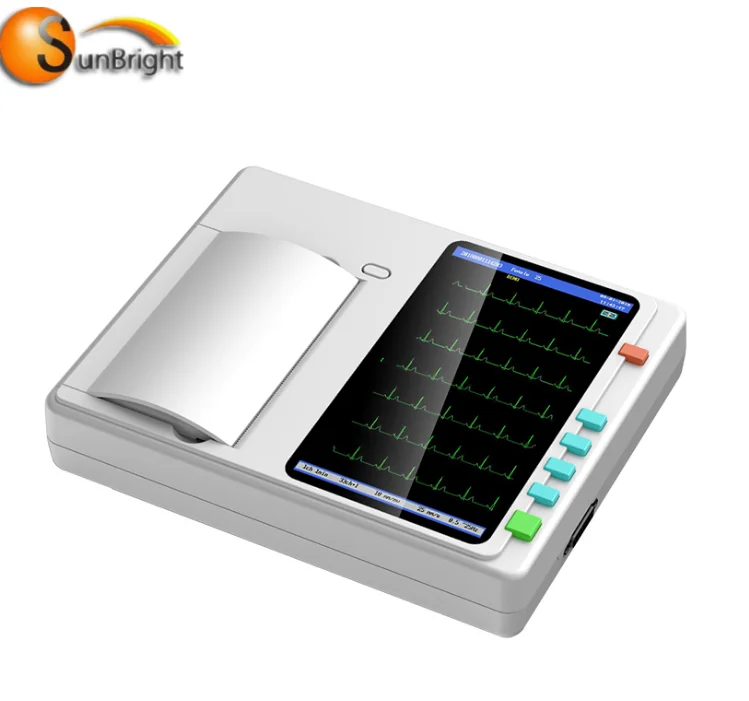

contec ecg 12 3 channel promotion 7″ Contact Display 6 channel lowest value of ecg machine
Options
Contact Display
7 inches Colour LCD show
Greater than 30000 sufferers save
Lowest value for a similar high quality line in China
Assist SD card, USB disk
Connectivity/Media/Peripherals
|
Objects
|
specification
|
|
Options
|
7 “show,
contact display Assist Ecg evaluation capabilities |
|
Lead
|
commonplace 12 leads
|
|
lead acquisition
|
synchronously 12 leads
|
|
Enter circuit
|
Floating; Safety circuit in opposition to Defibrillator impact
|
|
Enter Impedance
|
≥50MΩ
|
|
Enter circuit present
|
≤0.0.05μA
|
|
File mode
|
Computerized: 3CH×4+1R, 3CH×4,
3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2; Guide: 3CH, 2CH, 3CH+1R, 2CH+1R; Rhythm: Any lead selectable. |
|
Filter
|
EMG Filter: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150Hz
DFT Filter: 0.05 Hz/ 0.15 Hz AC Filter: 50 Hz / 60Hz |
|
CMRR
|
>100dB
|
|
Affected person present leakage
|
<10μA
|
|
Enter Circuit Present
|
<0.05µA
|
|
Frequency Response
|
0.05Hz~150Hz (-3dB)
|
|
Sensitivity
|
2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV
|
|
Anti-baseline Drift
|
Computerized
|
|
Time fixed
|
≥3.2s
|
|
Noise stage
|
<15μVp-p
|
|
Paper velocity
|
12.5 mm/s, 25 mm/s, 50 mm/s
|
|
Recording mode
|
Thermal printing system
|
|
Paper specification
|
Solar-7031:80mmx20m paper roll
Solar-7062:120mmx20m paper roll
|
|
LCD show
|
7″ graphic LCD
|
|
Security classification
|
IEC60601-1 class I, kind CF
|
|
Energy provide
|
AC: 100~240V, 50/60Hz, 30VA~100VA
|
|
Fuse
|
AC220V±10% 2*Φ5×20mm,T2A/250V AC time lag
|
Scanning Photographs
|
Affected person cable
|
1 set
|
||||||
|
Limb electrode
|
4 units
|
||||||
|
Chest electrodes
|
6 units
|
||||||
|
Grounding cable
|
1 set
|
||||||
|
Paper axis
|
1 set
|
||||||
|
Thermal paper
|
1 set
|
||||||
|
Fuse
|
2 units
|
||||||
|
3-cord energy wire
|
1 set
|
||||||
|
AC Adaptor
|
1 set
|
||||||
Suggest Merchandise
Packing & Supply
1. Package deal: double carton packing containers
2. Port: Shenzhen China, Shanghai China
3. Supply time: 3-5 working days after receipt of cost
4. Cost time period: T/T prematurely, MoneyGram, Commerce Assurance, Western Union, Escrow, Paypal, Credit score Card!
Why select us
Certifications
