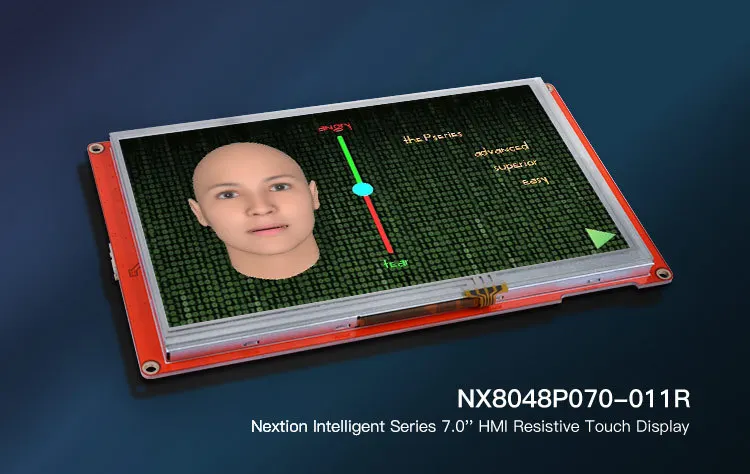

Nextion Intelligent P Series: NX8048P070-011R 7″Resistive Touch Display HMI TFT LCD Module (Replacement for NX8048K070)

Nextion Intelligent P Series: NX8048P070-011R can be serially controlled/read via UART

Advantages this screens over the Enhanced Nextion K Series screens:

More powerful hardware in terms of MCU, flash storage and SRAM Ability to play audio, video and animation options Supports more advanced software features and functions such as transparent components, loading effects, drag and drop functionalities etc.

Compared to Basic T Series Nextion screen, this also has:

Built-in RTC Data can be saved on flash memory GPIO pins (2 PWM capable) Larger flash memory

Feature:

Compatible with Raspberry Pi A+, B+, Pi 2, Pi 3, Arduino RGB 65K true to life colours Resistive TFT touchscreen 128MB Flash memory for User Application Code and Data EEPROM: 1024 bytes RAM: 512 KB Instruction buffer: 1024 bytes Interface: XH2.54 4 pin TTL serial interface Input voltage: 4.7 – 7 V (5 V standard) Input current: 430mA (max brightness), 170mA (sleep mode). Recommended power: 5V minimum1A Speaker: 0.5 watt rated capacity, Impedance of 16Ω Screen size: 7.0 inch Screen resolution: 800×480 pixels Screen brightness: 300 cd/m^2,(0~300 nit, the interval of adjustment is 1%) Backlight lifetime (Average): >30,000 Hours On board micro-SD card slot for program upgradation, FAT32. Suitable for up to 32GB SD card Micro USB power supply plug Visual Area: 154.08mm(L)×85.92mm(W) Dimensions: 181 x 108 x 9.3mm Certificates: CE/EMC, RoHS x
